5RJ1DR00N0X-XXXX00L-628-AX

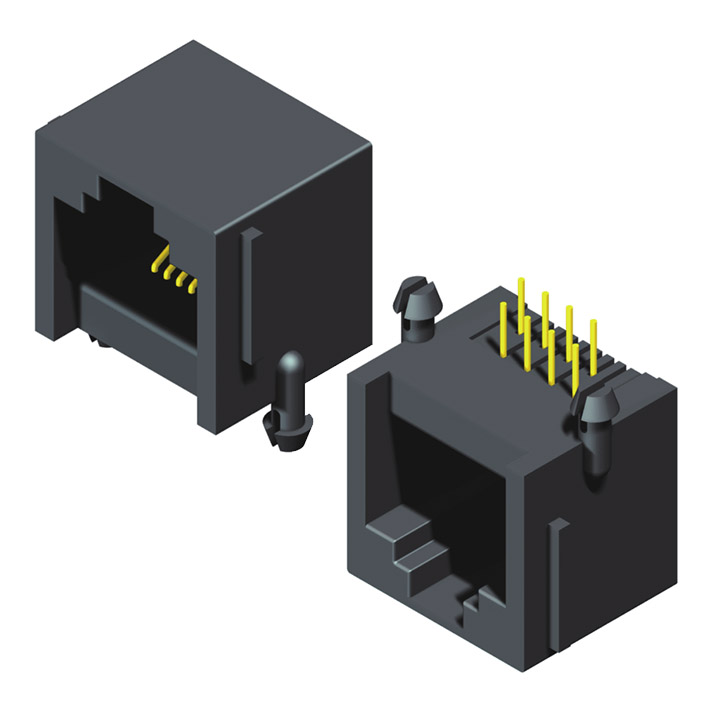

Modular Jack Side Entry H=14.5 W=13.1 628 Series
Specification:
Voltage Rating: 125V
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 1000 V
Temperature: -40°C ~ 70°C
Durability: 750 Cycles Min.
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 1000 V
Temperature: -40°C ~ 70°C
Durability: 750 Cycles Min.
Material
Housing: P.B.T, UL94V-0, Black or Gray
Insert: P.B.T, UL94V-0, 6P&4P-Black, 8P&10P-Gray
Conductor: 0.45 mm diameter Phosphor Bronze,
Plating: Gold plated over nickel.
Insert: P.B.T, UL94V-0, 6P&4P-Black, 8P&10P-Gray
Conductor: 0.45 mm diameter Phosphor Bronze,
Plating: Gold plated over nickel.
