5RJ1DR00N0X-XXXX00L-290-AX

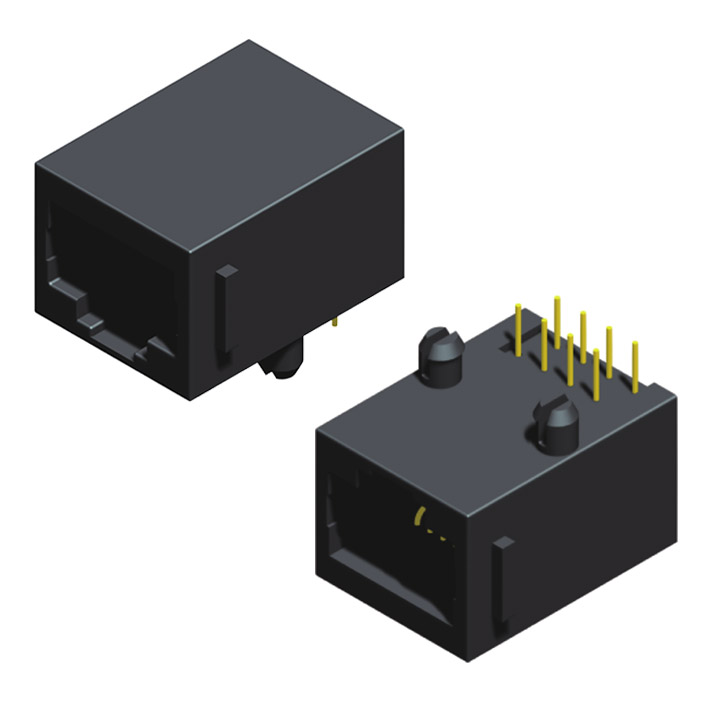

Modular Jack Side Entry H=12.5 W=20.5 290 Series
Specification:
Current Rating: 1.5AMP
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000V AC/Minute
OperationTemperature: -40°C to +85°C
Durability: 750 Cycles Min.
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000V AC/Minute
OperationTemperature: -40°C to +85°C
Durability: 750 Cycles Min.
Material
Insulator: PBT,UL 94V-0
Conductor: 0.35 x 0.42mm thickness Phosphor Bronze
Plating: Gold plated over nickel on contact area,
Tin plated over nickel on solder area.
Conductor: 0.35 x 0.42mm thickness Phosphor Bronze
Plating: Gold plated over nickel on contact area,
Tin plated over nickel on solder area.
