5RJ1DR00N0X-XXXX00L-627-AX

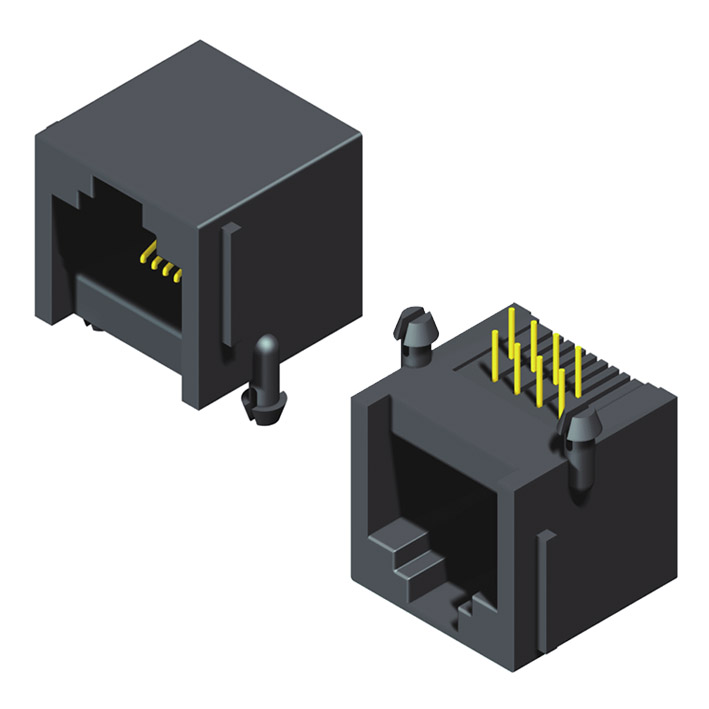

Modular Jack Side Entry H=14.5 W=15.0 627 Series
Specification:
Temperature: -40°C ~ 70°C
Durability: 750 Cycles Min.
Durability: 750 Cycles Min.
Material
Housing: P.B.T, UL94V-0, Black or Gray
Insert: P.B.T, UL94V-0, 6P&4P-Black, 8P&10P-Gray
Conductor: Round pin 0.45 mm diameter Phosphor Bronze,
Plating: Gold plated over nickel.
Insert: P.B.T, UL94V-0, 6P&4P-Black, 8P&10P-Gray
Conductor: Round pin 0.45 mm diameter Phosphor Bronze,
Plating: Gold plated over nickel.
