5DINSL2XXF-XXXXWAB01
5DINSL2XXF-XXXXWAB01

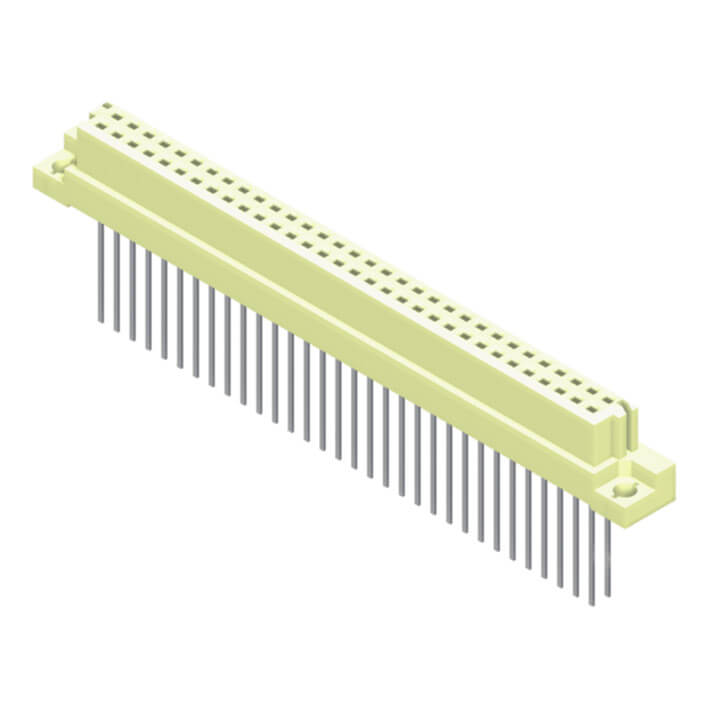

DIN 41612 Long Body B Type Female P=5.08
Specification:
Current Rating: 2 AMP AC, DC
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -40°C to +105°C
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -40°C to +105°C
Material
Insulator: PBT, UL94V-0
Contact Pin: Brass
Contact Pin: Brass
