5DINSL2XXM-XXXXWAB01

Products Category

5DINSL2XXM-XXXXWAB01

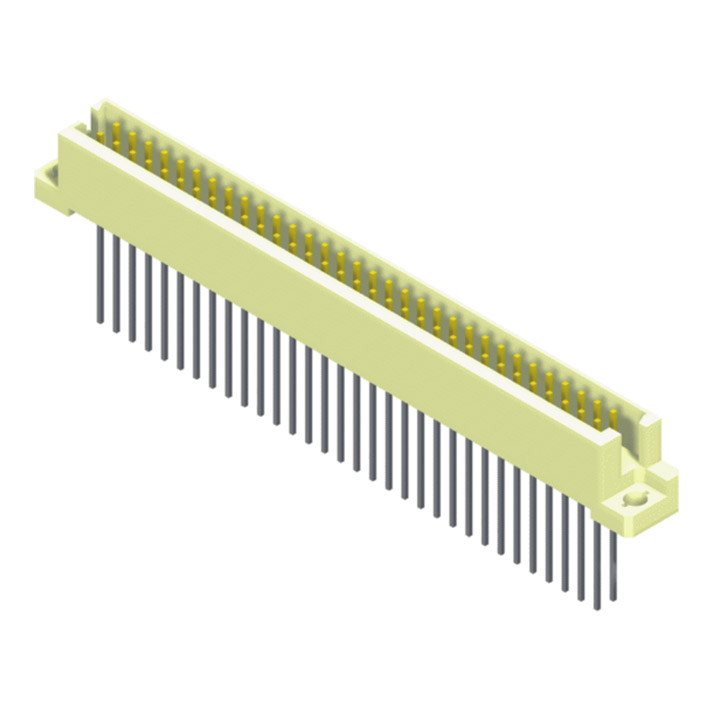

DIN 41612 Long Body Q Type Male P=5.08

Specification:

Current Rating: 2 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -40°C to +105°C

Material

Insulator:PBT,UL94V-0
Contact: Brass

3D Model

Order / Inquiry Information:

×
