6STMS08-014XXXXDXA01

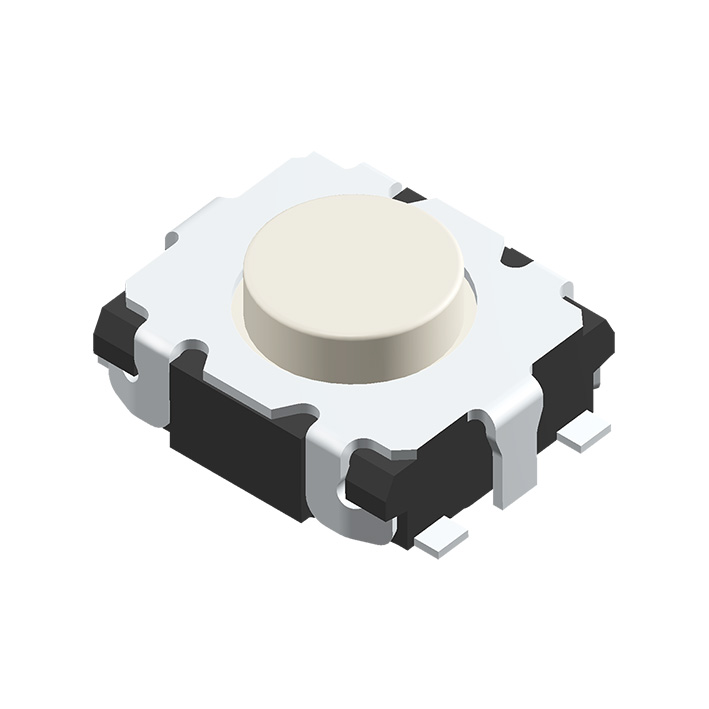

TACT SWITCH SMT Vertical Type With Ground H=1.4mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING: DC12V,50mA MAX
CONTACT RESISTANCE: 100mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING LIFE: 200,000 CYCLES
OPERATING FORCE: 80gf±30gf,120gf±30gf,
160gf±30gf,250gf±50gf,400gf±100gf
RATING: DC12V,50mA MAX
CONTACT RESISTANCE: 100mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING LIFE: 200,000 CYCLES
OPERATING FORCE: 80gf±30gf,120gf±30gf,
160gf±30gf,250gf±50gf,400gf±100gf
Materials
BASE: LCP,BLACK
TERMINAL: PHOSPHOR BRONZE,SILVER PLATED
CONTACT: STAINLESS STEEL,SILVER PLATED
COVER: STAINLESS STEEL
ACTUATOR: LCP
TERMINAL: PHOSPHOR BRONZE,SILVER PLATED
CONTACT: STAINLESS STEEL,SILVER PLATED
COVER: STAINLESS STEEL
ACTUATOR: LCP
