6STMS09-006XXXXXXA01

Products Category

6STMS09-006XXXXXXA01

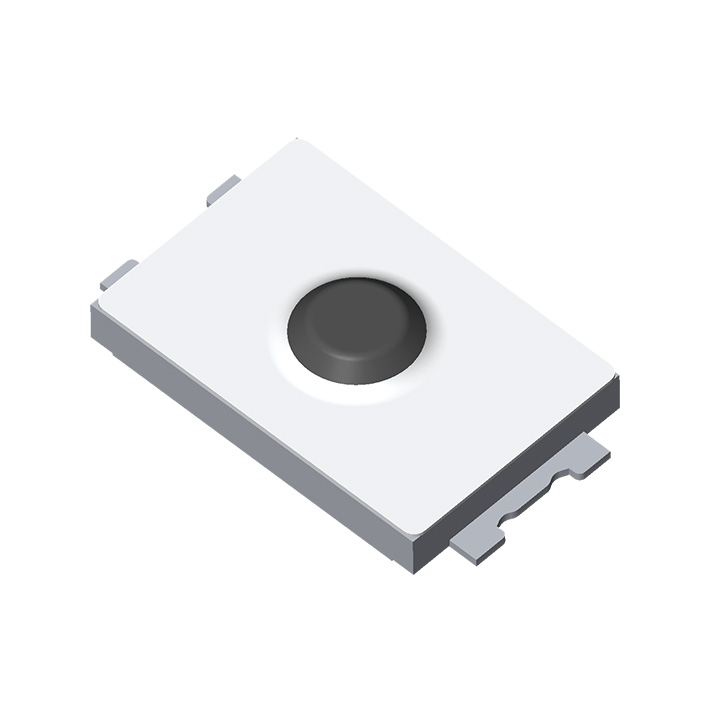

TACT SWITCH SMT Vertical Type H=0.6mm

Specification:

DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC12V,100mA MAX
CONTACT RESISTANCE:500mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:300,000 CYCLES
OPERATING FORCE:160gf±50gf

Materials

BASE:PA6T
TERMINAL:PHOSPHOR BRONZE,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
ACTUATOR:POLYAMIDE

3D Model
