6STMR05-XXXXXXXXXA01

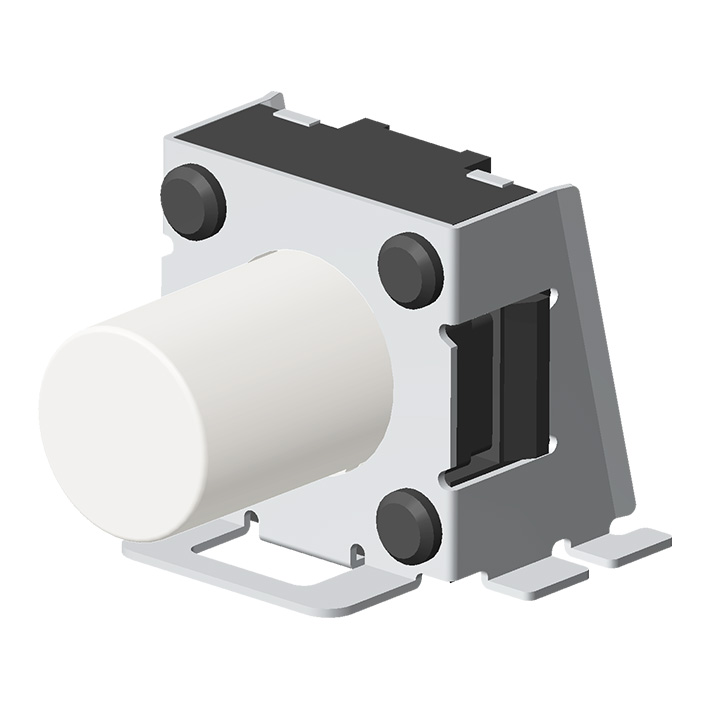

TACT SWITCH SMT Right Angle Type H=6.2mm

Specification:

DIELECTRIC STRENGTH: AC250V /1MIN
RATING: DC12V,50mA MAX
CONTACT RESISTANCE: 100mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING LIFE: 200,000 CYCLES
OPERATING FORCE: 180gf±50gf OR 250gf±50gf

3D Model
