6STMR03-035XXXXXXA01

Products Category

6STMR03-035XXXXXXA01

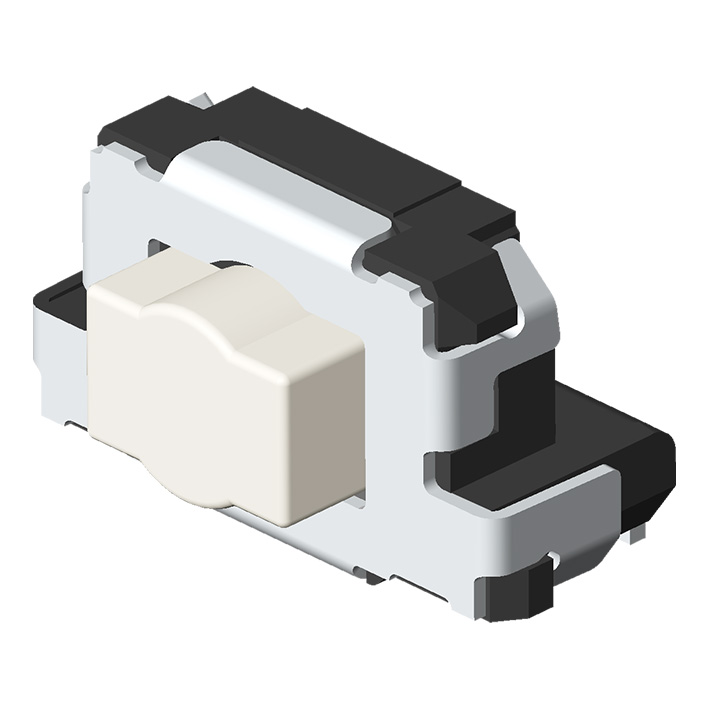

TACT SWITCH SMT Right Angle Type H=3.5mm

Specification:

DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC15V,20mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:300,000 CYCLES
OPERATING FORCE:180gf±50gf

3D Model
