6SDDR03-1011XXXXXK01

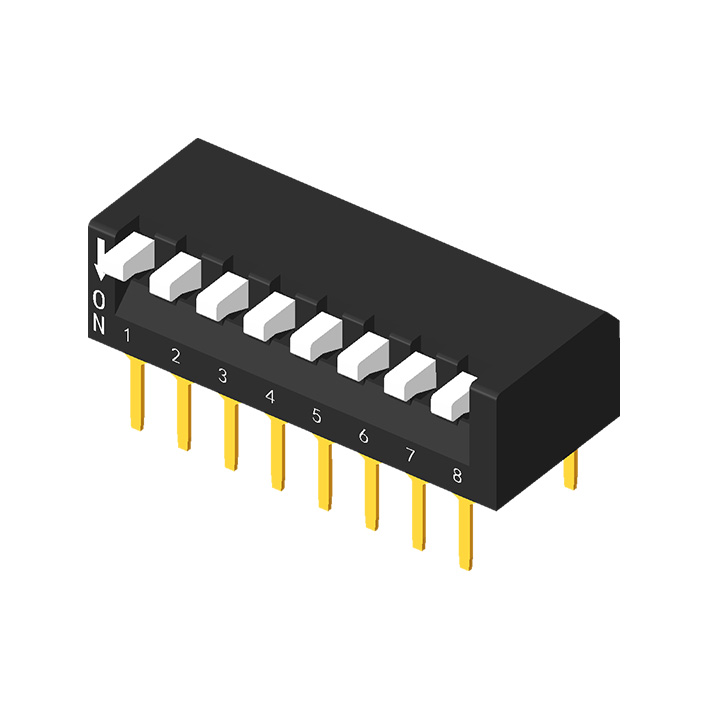

DIP Switch 2.54mm DIP Right Angle Type H=7.0mm
Specification:
DIELECTRIC STRENGTH: 500VAC/1 MINUTE
RATING:SWITCHING: 25mA,24VDC
NON-SWITCHING: 100mA,50VDC
CONTACT RESISTANCE: INITIAL: 50mΩ MAX
AFTER LIFE TEST: 100mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN AT 500VAC
MECHANICAL LIFE: 5000 CYCLES
ELECTRICAL LIFE: 3000 CYCLES
OPERATING FORCE: 1000g MAX
RATING:SWITCHING: 25mA,24VDC
NON-SWITCHING: 100mA,50VDC
CONTACT RESISTANCE: INITIAL: 50mΩ MAX
AFTER LIFE TEST: 100mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN AT 500VAC
MECHANICAL LIFE: 5000 CYCLES
ELECTRICAL LIFE: 3000 CYCLES
OPERATING FORCE: 1000g MAX
Materials
BASE:PPS,UL94V-0,BLACK
TERMINAL:BRASS,GOLD PLATED
CONTACT:PHOSPHOR BRONZE,GOLD PLATED
COVER:PPS,UL94V-0,UL94V-0,BLACK
ACTUATOR: NYLON46,UL94V-0,WHITE
TERMINAL:BRASS,GOLD PLATED
CONTACT:PHOSPHOR BRONZE,GOLD PLATED
COVER:PPS,UL94V-0,UL94V-0,BLACK
ACTUATOR: NYLON46,UL94V-0,WHITE
