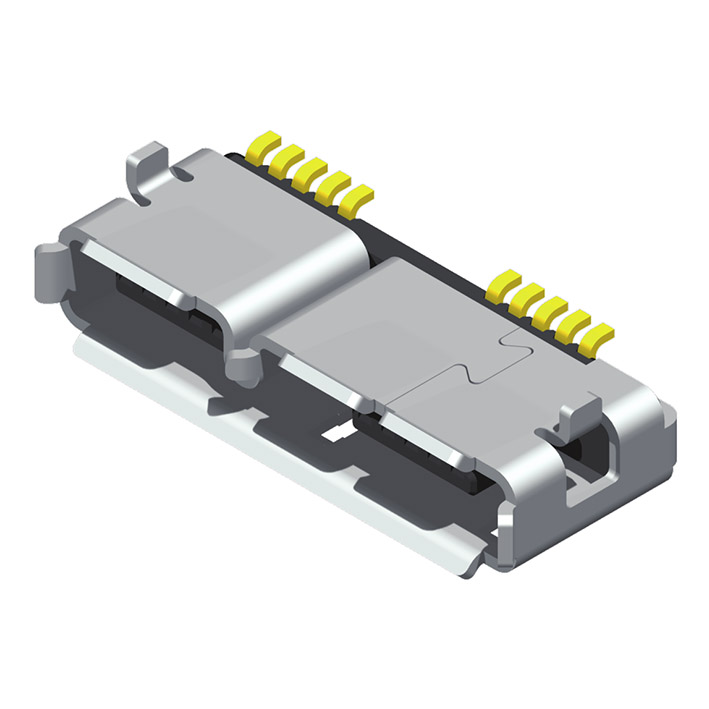

5UR3M02MF-110GDBUHN1
Micro USB 3.0 AB Type Female SMT R/A 10P 02 Series
Specification:
Current Rating: 1.8 AMP
(Only Pin1,5) 0.25A For Other Pin
Insulation Resistance: 100MΩ Min.
Contact Resistance: 30mΩ Max
Dielectric Voltage: 100V AC/Minute
Operation Temperature: -55°C to +85°C
Durability: 10,000 Cycles
Insertion Force: 35N Max
Withdrawal Force: 8N Min
(Only Pin1,5) 0.25A For Other Pin
Insulation Resistance: 100MΩ Min.
Contact Resistance: 30mΩ Max
Dielectric Voltage: 100V AC/Minute
Operation Temperature: -55°C to +85°C
Durability: 10,000 Cycles
Insertion Force: 35N Max
Withdrawal Force: 8N Min
Material
Insulator: LCP+50%GF, UL94V-0
Contact Pin: Phosphor Bronze
Shield: Stainless Steel
Contact Pin: Phosphor Bronze
Shield: Stainless Steel
