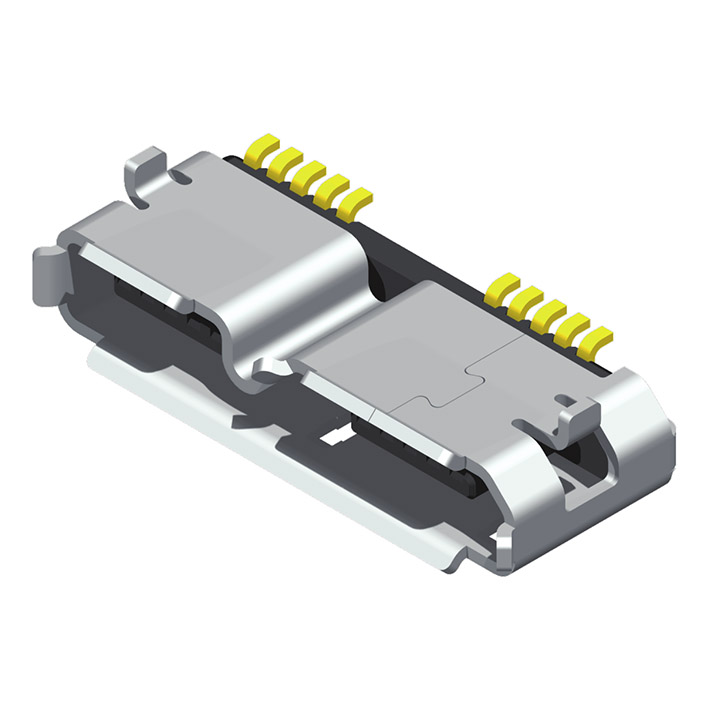

5UR3B02MF-110GDBUHN1
5UR3B02MF-110GDBUHN1

Micro USB 3.0 B Type Female SMT R/A 10P 02 Series

Specification:

Current Rating: 1.8AMP
(Only Pin1,5) 0.25A For Other Pin
Insulation Resistance: 100MΩ Min.
Contact Resistance: 30mΩ Max
Dielectric Voltage: 100V AC/Minute
Operation Temperature: -55°C to +85°C
Durability: 10,000 Cycles
Insertion Force: 35N Max
Withdrawal Force: 8N Min

Material

Insulator: LCP+50%GF, UL94V-0
Contact Pin: Phosphor Bronze
Shield: Stainless Steel
Order / Inquiry Information:
  • = Must have
