5UR2M01MF-105XXBUHD1

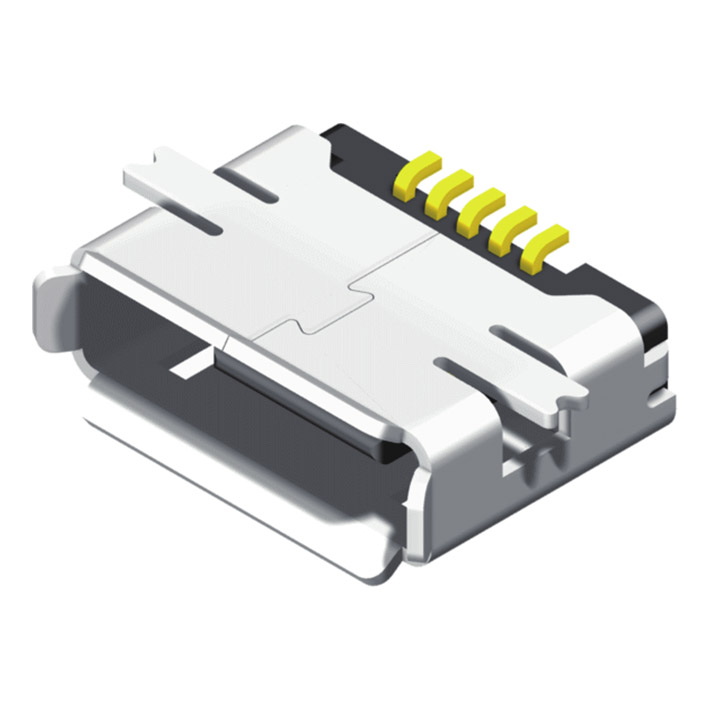

Micro USB AB Type Female SMT R/A 5P
Specification:
Contact Resistance:
(1)30mΩ Max. at 100mA
(2)10,000 Cycles After: 40mΩ Max.at 100mA
Rated Voltage: AC 30V
Contact Current Rating:
(1)Signal Line: 1A/Pin (No. 1 to 5)
(2)2-Line For Power: 1.8A/Pin(No. 1 and 5),0.5A/Pin(No. 2 to 4)
Insulation Resistance: 100MΩ Min. At 500V DC
Dielectric Withstanding Voltage: 100V AC/Minute
Durability (Life Test): 10,000 Cycles
Insertion Force: 35N Maximum
Extraction Force: 8N Min.
Operating Temperature: -30°C to +85°C
(1)30mΩ Max. at 100mA
(2)10,000 Cycles After: 40mΩ Max.at 100mA
Rated Voltage: AC 30V
Contact Current Rating:
(1)Signal Line: 1A/Pin (No. 1 to 5)
(2)2-Line For Power: 1.8A/Pin(No. 1 and 5),0.5A/Pin(No. 2 to 4)
Insulation Resistance: 100MΩ Min. At 500V DC
Dielectric Withstanding Voltage: 100V AC/Minute
Durability (Life Test): 10,000 Cycles
Insertion Force: 35N Maximum
Extraction Force: 8N Min.
Operating Temperature: -30°C to +85°C
Material
Housing: LCP+30%G.F, UL94V-0
Pin Terminal: Phosphor Bronze T=0.2
Shield: Stainless Steel T=0.25
Pin Terminal: Phosphor Bronze T=0.2
Shield: Stainless Steel T=0.25
