5UR2B06MF-105XXBUHM1
5UR2B06MF-105XXBUHM1

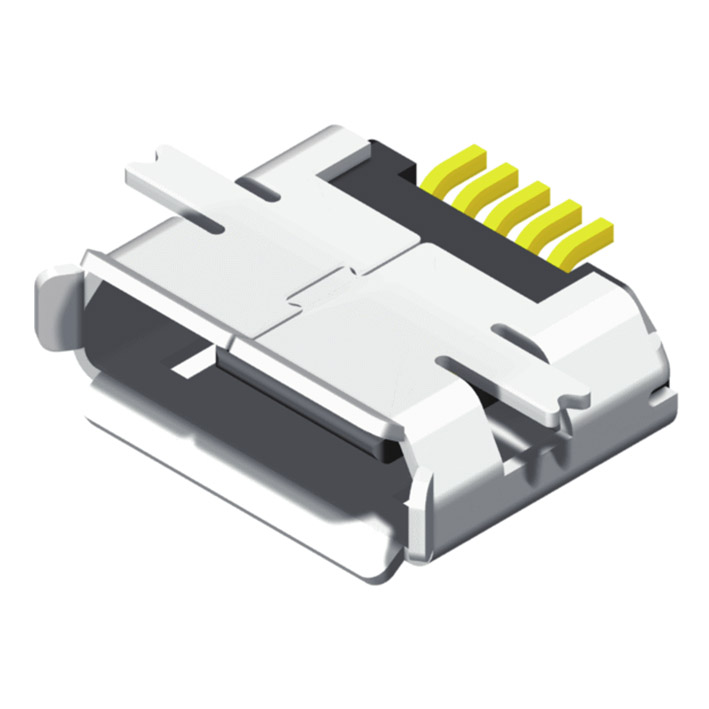

Micro USB B Type Female SMT R/A 5P
Specification:
Current Rating:1.0A
Voltage Rating:30V
Dielectric Strength:100V AC/Minute
Contact Resistance: 30m Ω max
Insulation Resistance: 100 MΩ min.
Mating Force:35N Max.
Un-mating Force:10N Min. Initial
8-20N After 10000 Cycles
Operating temperature:-30° to +80°
Voltage Rating:30V
Dielectric Strength:100V AC/Minute
Contact Resistance: 30m Ω max
Insulation Resistance: 100 MΩ min.
Mating Force:35N Max.
Un-mating Force:10N Min. Initial
8-20N After 10000 Cycles
Operating temperature:-30° to +80°
Material
Housing:High Temp Plastic (UL94V-0)
Contact:Copper Alloy
Shield: C2680R-H,Nickel Plated
Contact:Copper Alloy
Shield: C2680R-H,Nickel Plated
