5TF100N-0HWAXXXLX-01

Products Category

5TF100N-0HWAXXXLX-01

Feed Through Terminal Block 10.0mm 0HW Series Increase 1.2mm

Feed Through Terminal Block 10.0mm 0HW Series Increase 1.2mm

Specification:

ELECTRICAL
Standard: UL IEC
Withstanding Voltage: AC 2000V for one min
Insulation Resistance: 500MΩ
MECHANICAL
Temp. Range: -40°C ~ +105°C
Steip length: 7-8mm

Material

Housing: PA66, UL94V-2
Screws: Steel, Zn plated
Copper Cylinder: Copper alloy, Zn plated

604

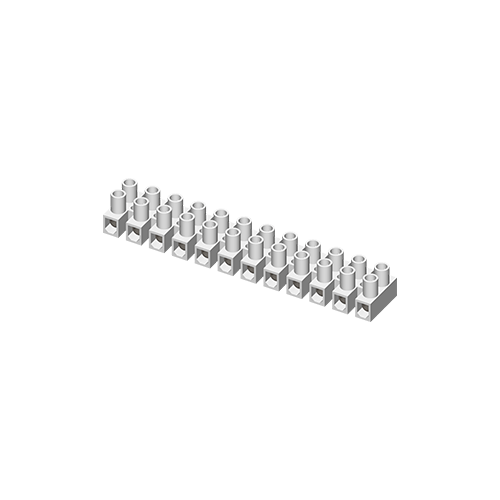

3D Model
Order / Inquiry Information:
  • = Must have
