5RT1DR10R2N-88XXS3L-001-E2

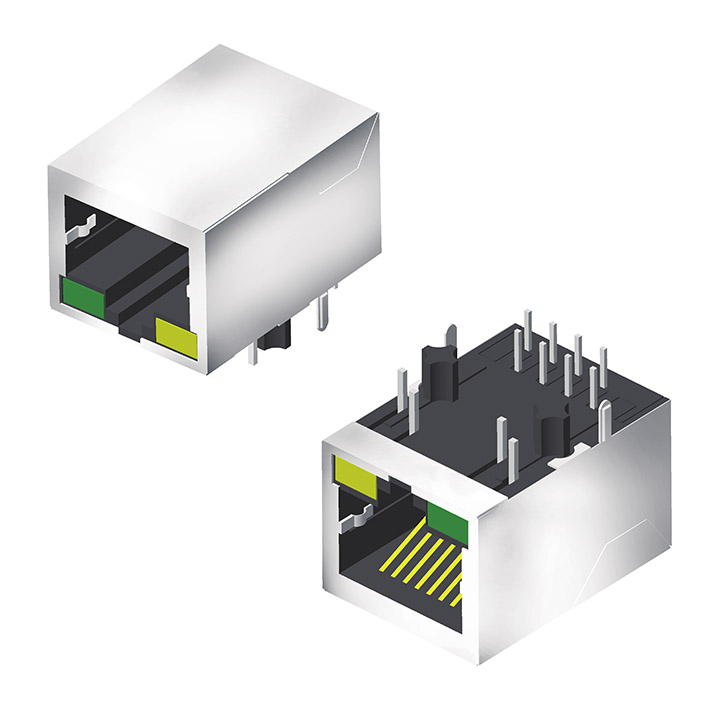

Modular Jack Shielded Side Entry With LED H=13.35 W=21.6 001 Series
Specification:
Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8mA DC bias
Integrated Mag-modular design provides higher reliability and conserves Minimizing PCB space
Different color of LEDs option available
Operating temperature: 0°C to +70°C
Storage temperature: -40°C to +85°C
Integrated Mag-modular design provides higher reliability and conserves Minimizing PCB space
Different color of LEDs option available
Operating temperature: 0°C to +70°C
Storage temperature: -40°C to +85°C
Material
Housing:Thermoplastic PBT+30%GF UL94V0 rated
Contact: Phosphor Bronze C5191,Thickness=0.35mm plated
Nickel 30u” Min,Content area Gold plated
InputTerminal: Brass ,Thickness=0.35mm
Finish: 120μ” MinTin over 50μ” Min Nickel
Metal shielding: Copper alloy with Nickel plated(C2680),Thickness=0.20mm Ni 30u” Min
Contact: Phosphor Bronze C5191,Thickness=0.35mm plated
Nickel 30u” Min,Content area Gold plated
InputTerminal: Brass ,Thickness=0.35mm
Finish: 120μ” MinTin over 50μ” Min Nickel
Metal shielding: Copper alloy with Nickel plated(C2680),Thickness=0.20mm Ni 30u” Min
