5PCS5S1NB-36S0IXU-J1
Home>Board to Board Connector>5PCS5S1NB-36S0IXU-J1

Products Category

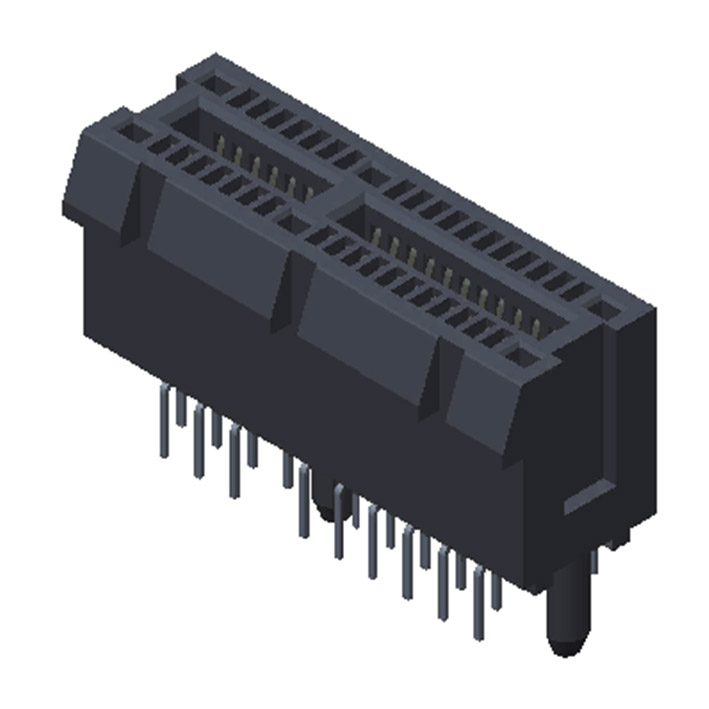

5PCS5S1NB-36S0IXU-J1

PCI 1.0mm Straight Type 36P

Specification:

Current Rating: 1.1 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30mΩ Max.
Operation Temperature: -55°C to +105°C

Material

Insulator: Nylon 46 + 30%G.F., UL 94V-0, BLACK
Contact Pin: Copper Alloy

Download Files

2D
3D
3D Model
Order / Inquiry Information:
  • * = Must have
