5KSIS-06S0NHL01

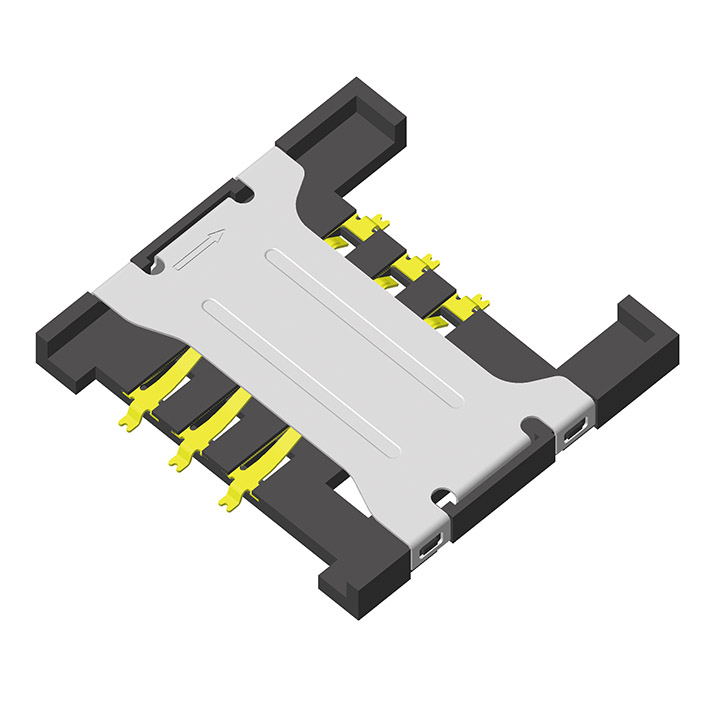

Sim Card Holder Push-Pull Type 6P H=1.5 / 1.8
Specification:
Current Rating: 1.0 AMP
Voltage Rating: 30V
Insulation Resistance: 1000Ω Min.
Contact Resistance: 50mΩ Max.
Dielectric Voltage: 100V AC/Minute
Operation Temperature: -30°C to +80°C
Voltage Rating: 30V
Insulation Resistance: 1000Ω Min.
Contact Resistance: 50mΩ Max.
Dielectric Voltage: 100V AC/Minute
Operation Temperature: -30°C to +80°C
Material
Insulator: Hi-Temp Thermoplastic, UL 94V-0, BLack
Contact: Copper Alloy
Shell: Stainless Steel
Contact: Copper Alloy
Shell: Stainless Steel
