57SHDRXF-15AXXXXA-01
57SHDRXF-15AXXXXA-01

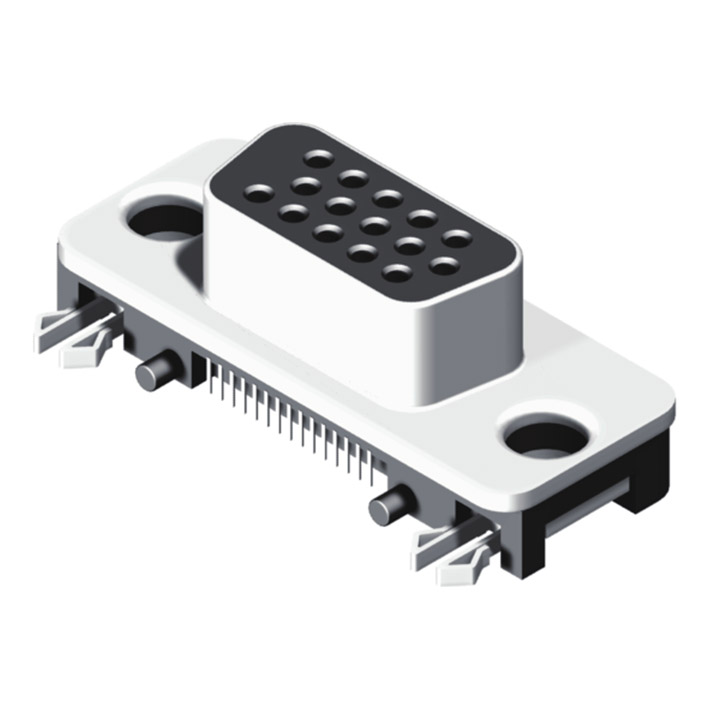

D-SUB H.D. Slim SMT Type
Specification:
Current Rating: 3 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 25mΩ Max.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -55°C to +85°C
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 25mΩ Max.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -55°C to +85°C
Material
Insulator: PBT or Nylon 9T, UL 94V-0
Contact Pin: Copper Alloy
Shell: SPCC
Board lock: Copper Alloy
Rivet: Copper Alloy
Screw: Copper Alloy
Contact Pin: Copper Alloy
Shell: SPCC
Board lock: Copper Alloy
Rivet: Copper Alloy
Screw: Copper Alloy
