57HDDRXM-XXAXXXXA-0X
57HDDRXM-XXAXXXXA-0X

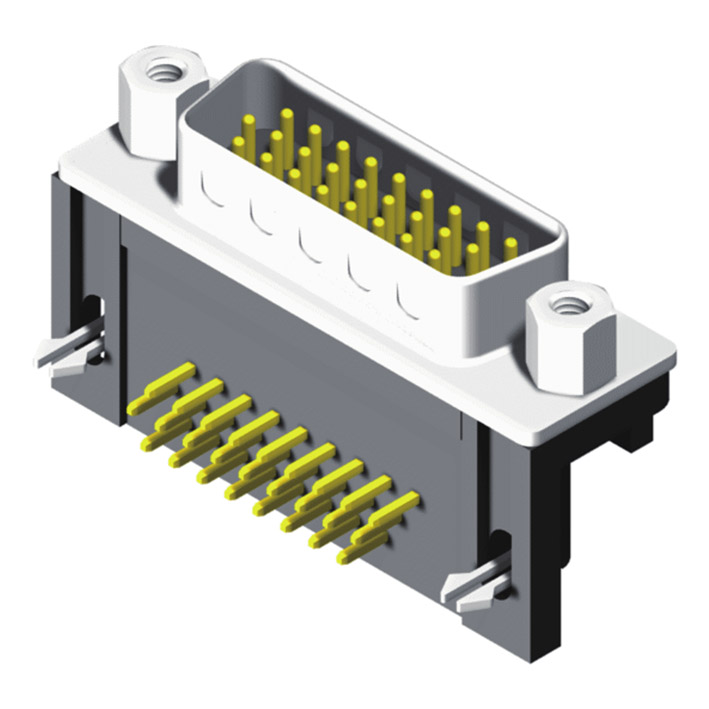

D-SUB H.D. Right Angle Type Male
Specification:
Current Rating: 3 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -55°C to +105°C
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -55°C to +105°C
Material
Insulator: PBT+30% G.F., UL94V-0
Contact: Brass
Shell: Steel
Clinch Nut : Brass, Nickel Plated
Screwlock : Brass, Nickel Plated
Contact: Brass
Shell: Steel
Clinch Nut : Brass, Nickel Plated
Screwlock : Brass, Nickel Plated
