57DBDSXM-XXXXXXXA-A1
57DBDSXM-XXXXXXXA-A1

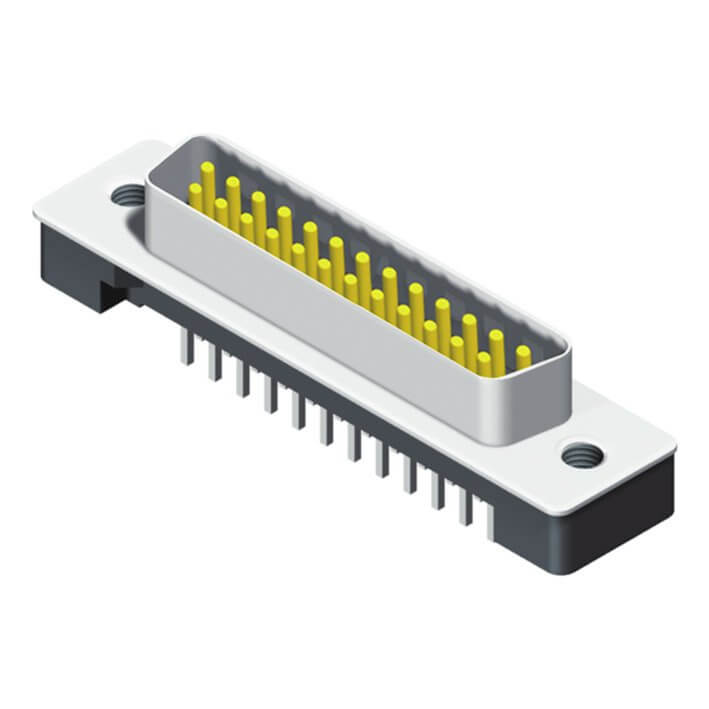

D-SUB Straight Dip Type Male 2
Specification:
Current Rating: 3 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -55°C to +105°C
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -55°C to +105°C
Material
Insulator: PBT+G. F., UL94V-0
Contact Pin: Copper Alloy
Contact Pin: Copper Alloy
