57DBDSXM-XXXXXXXA-01

Products Category

57DBDSXM-XXXXXXXA-01

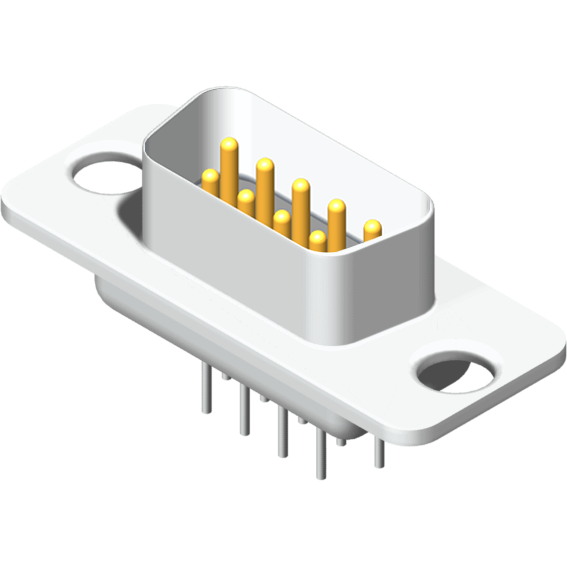

D-SUB Straight Dip Type Male

Specification:

Current Rating: 3 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -55°C to +105°C

Material

Insulator: PBT+30% G. F., UL94V-0
Contact Pin: Copper Alloy

3D Model

Order / Inquiry Information:

×
