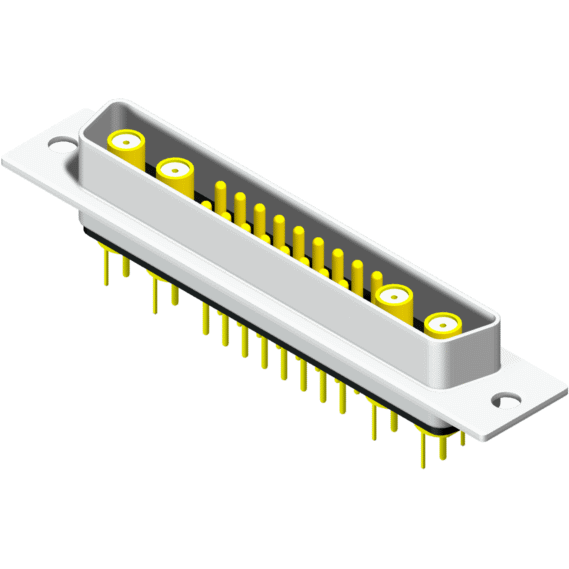

57CDDS2M-D6NNXXBBA-51
Coaxial Conn. Straight Type Male
Specification:
Coaxial Contact Impedance: 50Ω
Coaxial Contact Resiatance: 2.7mΩ Max.
Signal Contact Current Rating: 5.0A
Signal Contact Resiatance: 10mΩ Max.
Diekectric Withstanding Voltage: 1000V AC/Min
Insulation Resistance: 5GΩ Min.
Temperature Rating: -55°C to +125°C
Coaxial Contact Resiatance: 2.7mΩ Max.
Signal Contact Current Rating: 5.0A
Signal Contact Resiatance: 10mΩ Max.
Diekectric Withstanding Voltage: 1000V AC/Min
Insulation Resistance: 5GΩ Min.
Temperature Rating: -55°C to +125°C
Material
Insulator: PBT thermoplastic, 30% glass filled
UL 94V-0 Rated, Black color
Signal Contact: Copper Alloy
Coaxial Contact: Copper Alloy
UL 94V-0 Rated, Black color
Signal Contact: Copper Alloy
Coaxial Contact: Copper Alloy
