6STMS25-040XXXXXXA01
Products Category
6STMS25-040XXXXXXA01

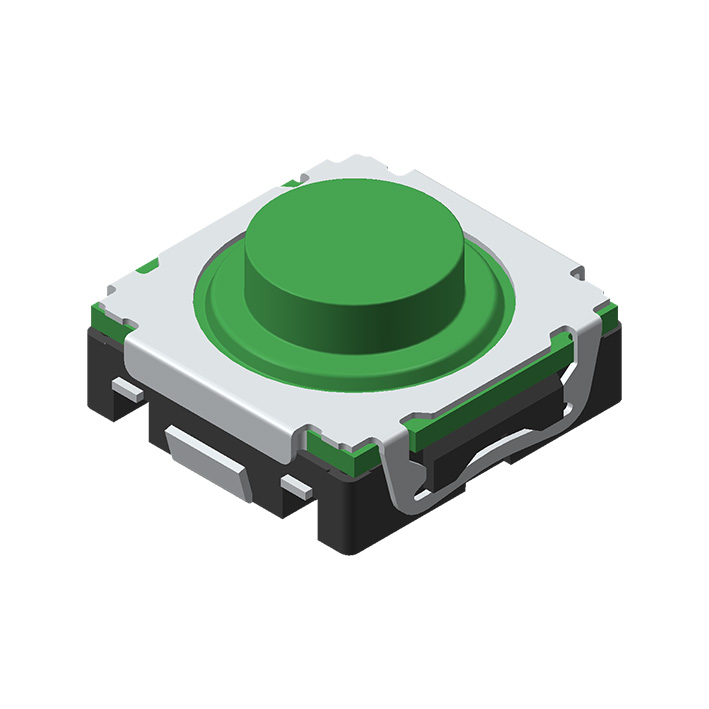

TACT SWITCH SMT Vertical Type H=4.0mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC16V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:500,000 CYCLES
OPERATING FORCE:250gf±50gf OR 320gf±70gf OR 400gf±100gf
700gf±100gf OR 1000gf±200gf
RATING:DC16V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:500,000 CYCLES
OPERATING FORCE:250gf±50gf OR 320gf±70gf OR 400gf±100gf
700gf±100gf OR 1000gf±200gf
Materials
BASE:LCP
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL
ACTUATOR:SILICONE
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL
ACTUATOR:SILICONE
