6STMS19-XXXXXXXXXA01

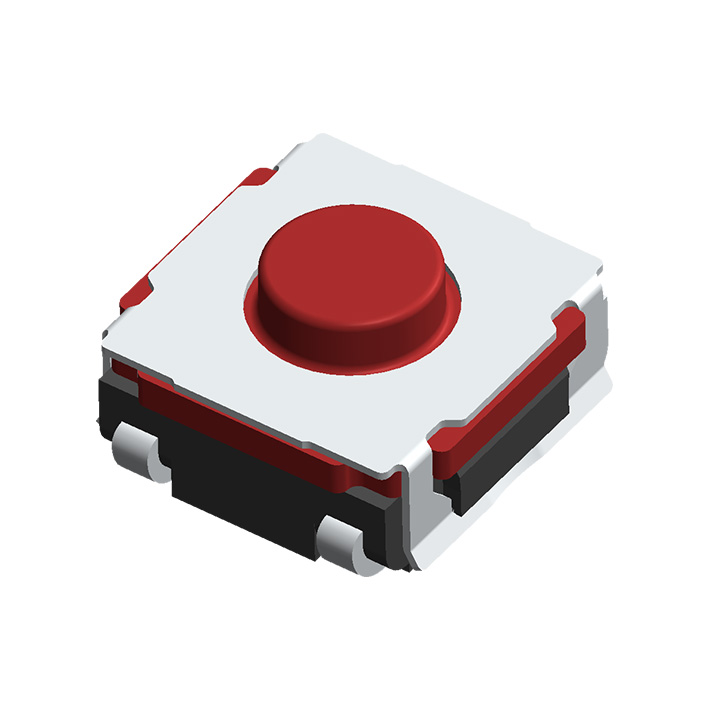

TACT SWITCH SMT Vertical Type H=2.6/3.5/4.3/4.9/5.2mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC12V 50mA MAX,DC1V 10μA MIN
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:3,000,000 CYCLES
OPERATING FORCE:120gf±30gf OR 180gf±50gf OR 250gf±50gf
350gf±70gf OR 400gf±100gf OR 500gf±100gf
700gf±150gf
RATING:DC12V 50mA MAX,DC1V 10μA MIN
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:3,000,000 CYCLES
OPERATING FORCE:120gf±30gf OR 180gf±50gf OR 250gf±50gf
350gf±70gf OR 400gf±100gf OR 500gf±100gf
700gf±150gf
Materials
BASE:NYLON6T
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:BRASS
ACTUATOR:PPA
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:BRASS
ACTUATOR:PPA
