6STMS10-015XXXXXXA01
Products Category
6STMS10-015XXXXXXA01

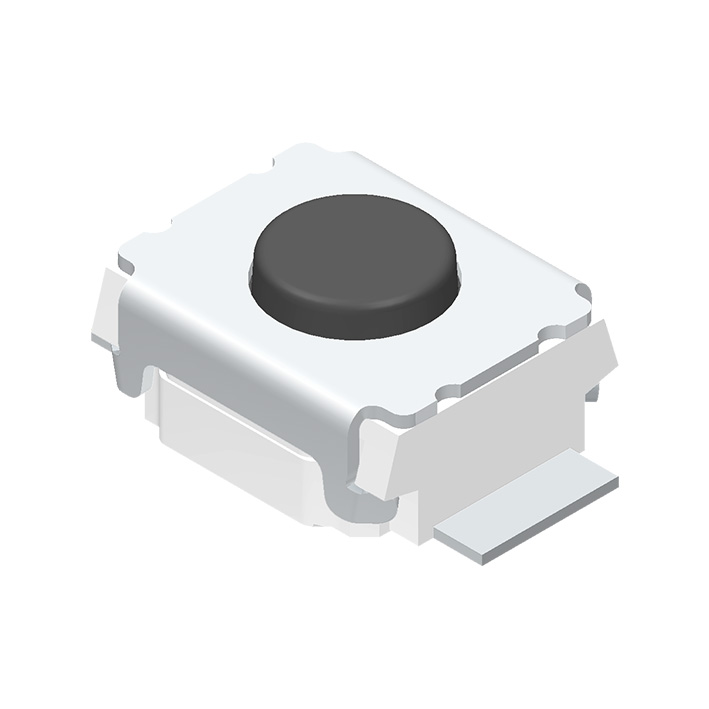

TACT SWITCH SMT Vertical Type H=1.5mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:200,000 CYCLES
OPERATING FORCE:160gf±50gf OR 250gf±50gf
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:200,000 CYCLES
OPERATING FORCE:160gf±50gf OR 250gf±50gf
Materials
BASE:LCP
TERMINAL:PHOSPHOR BRONZE,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL
ACTUATOR:LCP
TAPE SEALED:PI
TERMINAL:PHOSPHOR BRONZE,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL
ACTUATOR:LCP
TAPE SEALED:PI
