6STMR06-066XXXXXXA01
Products Category
6STMR06-066XXXXXXA01

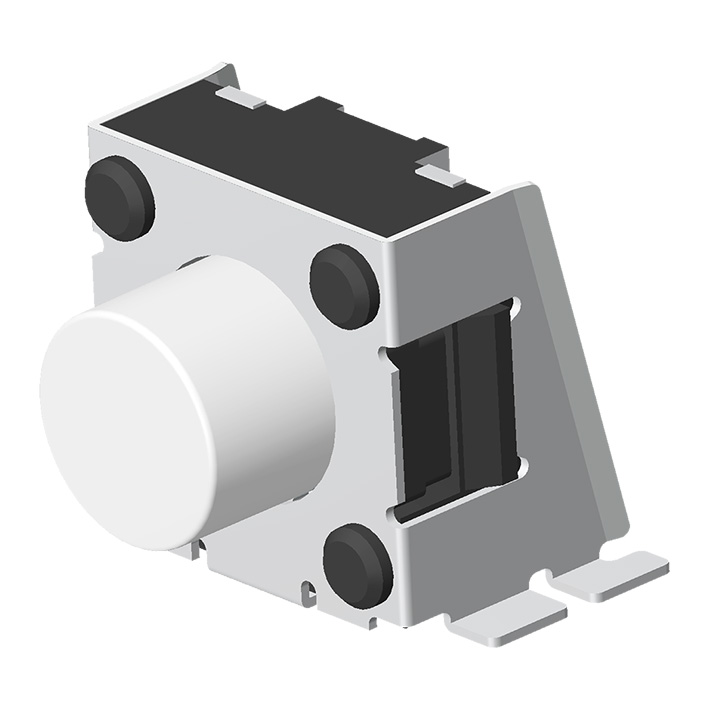

TACT SWITCH SMT Right Angle Type H=6.2mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:100,000 CYCLES
OPERATING FORCE:180gf±50gf
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:100,000 CYCLES
OPERATING FORCE:180gf±50gf
MATERIALS
BASE:NYLON 6T,NATURAL
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL,SILVER PLATED
ACTUATOR:PPA
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL,SILVER PLATED
ACTUATOR:PPA
