6SSMS01-030XXXXXXF01
Products Category
6SSMS01-030XXXXXXF01

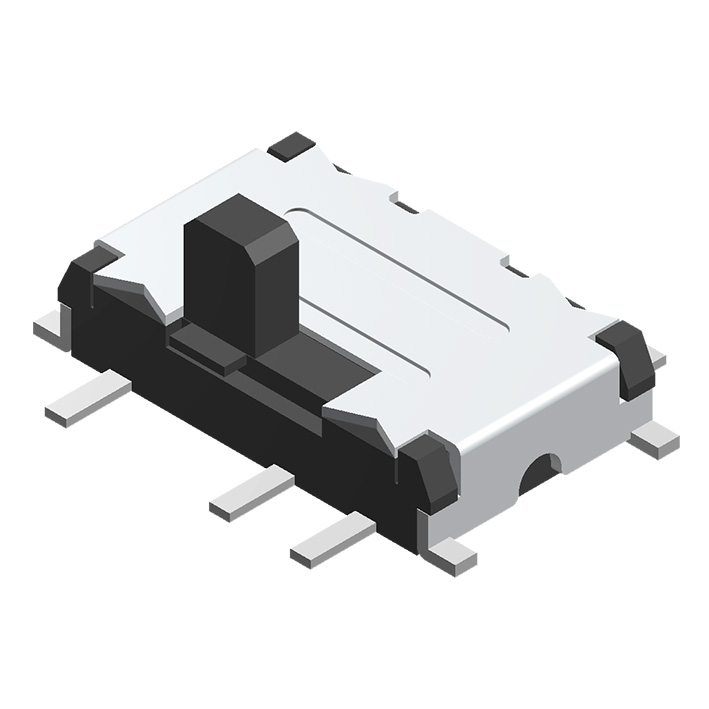

Slide Switch SMT Vertical Type H=3.0mm
Specification:
DIELECTRIC STRENGTH: AC250V 50Hz/1MIN
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:70mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:10,000 CYCLES
OPERATING FORCE:200gf±50gf
TRAVEL:1.5±0.1mm
OPERATING TEMPERATURE:-10°C~+60°C
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:70mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:10,000 CYCLES
OPERATING FORCE:200gf±50gf
TRAVEL:1.5±0.1mm
OPERATING TEMPERATURE:-10°C~+60°C
Materials
BASE:LCP,BLACK
TERMINAL:PHOSPHOR BRONZE,SILVER PLATED
ACTUATOR:NYLON 46,BLACK
CONTACT:PHOSPHOR BRONZE,SILVER PLATED
COVER:PHOSPHOR BRONZE,SILVER PLATED
SPRING:STAINLESS STEEL
TERMINAL:PHOSPHOR BRONZE,SILVER PLATED
ACTUATOR:NYLON 46,BLACK
CONTACT:PHOSPHOR BRONZE,SILVER PLATED
COVER:PHOSPHOR BRONZE,SILVER PLATED
SPRING:STAINLESS STEEL
