6SRMS02-038010XXX301

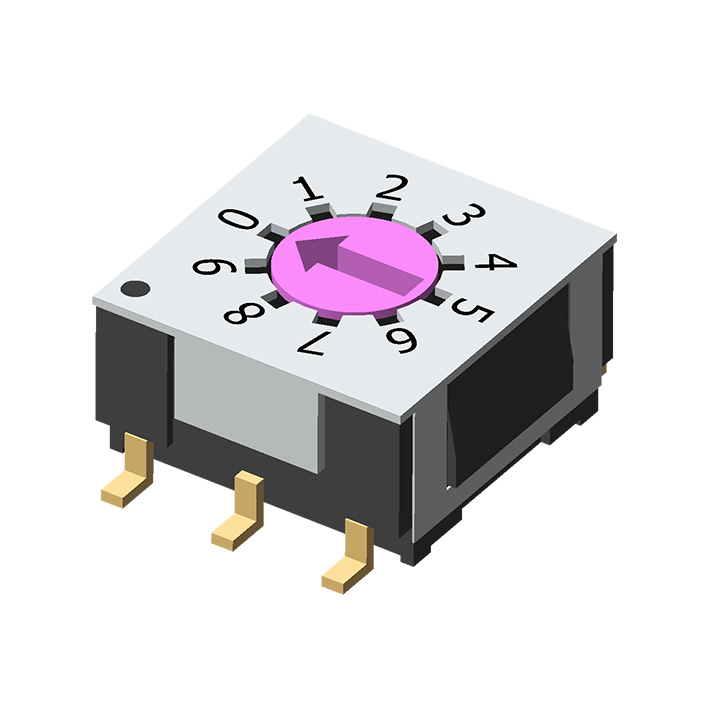

Rotary Code Switch SMT Vertical Type H=3.85mm
Specification:
DIELECTRIC STRENGTH: AC250V(50Hz OR 60Hz) /1MIN
RATING:SWITCHING: 150mA,42VDC
NON-SWITCHING: 200mA,42VDC
CONTACT RESISTANCE: 80mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING LIFE: 25000 CYCLES
OPERATING FORCE: 700gf MAX
OPERATING TEMPERATURE:-55°C~+125°C
RATING:SWITCHING: 150mA,42VDC
NON-SWITCHING: 200mA,42VDC
CONTACT RESISTANCE: 80mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING LIFE: 25000 CYCLES
OPERATING FORCE: 700gf MAX
OPERATING TEMPERATURE:-55°C~+125°C
Materials
BASE:LCP
TERMINAL:PHOSPHOR BRONZE,GOLD PLATED
CONTACT:PHOSPHOR BRONZE,GOLD PLATED
COVER:STAINLESS STEEL
ACTUATOR:LCP
O-RING:SILICONE
TERMINAL:PHOSPHOR BRONZE,GOLD PLATED
CONTACT:PHOSPHOR BRONZE,GOLD PLATED
COVER:STAINLESS STEEL
ACTUATOR:LCP
O-RING:SILICONE
