6SLMR02-113XXXXXXF01
Products Category
6SLMR02-113XXXXXXF01

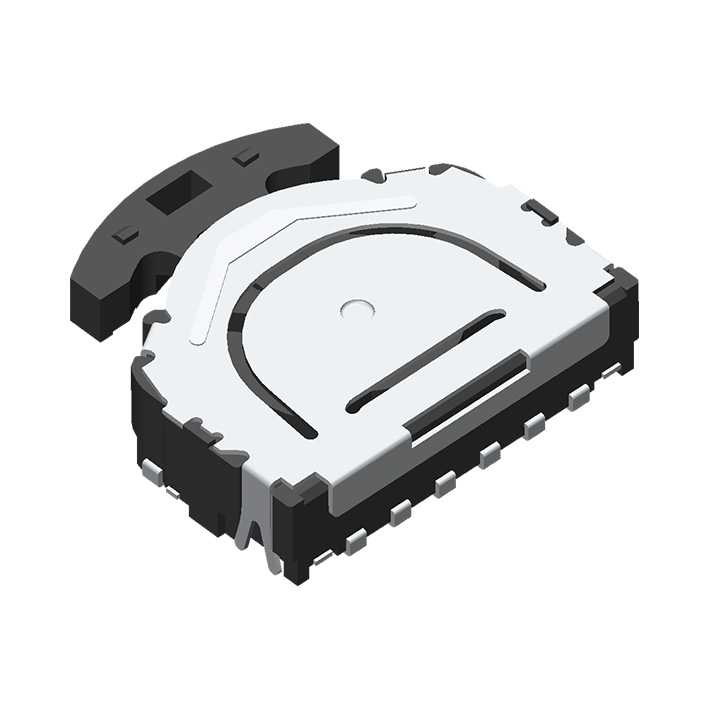

Lever & Push Switch SMT Right Angle Type H=3.5mm
Specification:
DIELECTRIC STRENGTH: AC110V 50Hz/1MIN
RATING:DC12V,0.1A MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:10,000 CYCLES
OPERATING FORCE:100gf±50gf OR 200gf±50gf
TRAVEL:0.85±0.2mm
OPERATING TEMPERATURE:-30°C~+85°C
RATING:DC12V,0.1A MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:10,000 CYCLES
OPERATING FORCE:100gf±50gf OR 200gf±50gf
TRAVEL:0.85±0.2mm
OPERATING TEMPERATURE:-30°C~+85°C
Materials
BASE:NYLON 46,BLACK
CONTACT:PHOSPHOR BRONZE
COVER:STAINLESS STEEL
ACTUATOR:NYLON 46
SPRING:STAINLESS STEEL
CONTACT:PHOSPHOR BRONZE
COVER:STAINLESS STEEL
ACTUATOR:NYLON 46
SPRING:STAINLESS STEEL
