6SDDS02-XXX1XXXXXK01

Products Category

6SDDS02-XXX1XXXXXK01

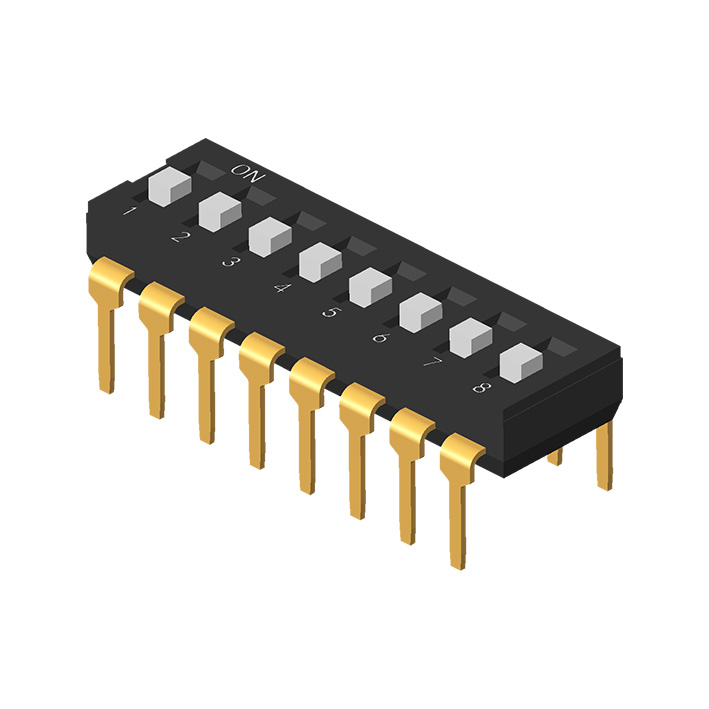

DIP Switch 2.54mm DIP Vertical Type H=3.2/3.7mm

Specification:

DIELECTRIC STRENGTH: 500VAC/1 MINUTE
RATING:SWITCHING: 25mA,24VDC
NON-SWITCHING: 100mA,50VDC
CONTACT RESISTANCE: INITIAL: 50mΩ MAX
AFTER LIFE TEST: 100mΩ MAX

Materials

BASE:NYLON 9T,UL94V-0,BLACK
TERMINAL:BRASS,GOLD PLATED

3D Model
