5UM2B01SM-105S0BUAC2
5UM2B01SM-105S0BUAC2

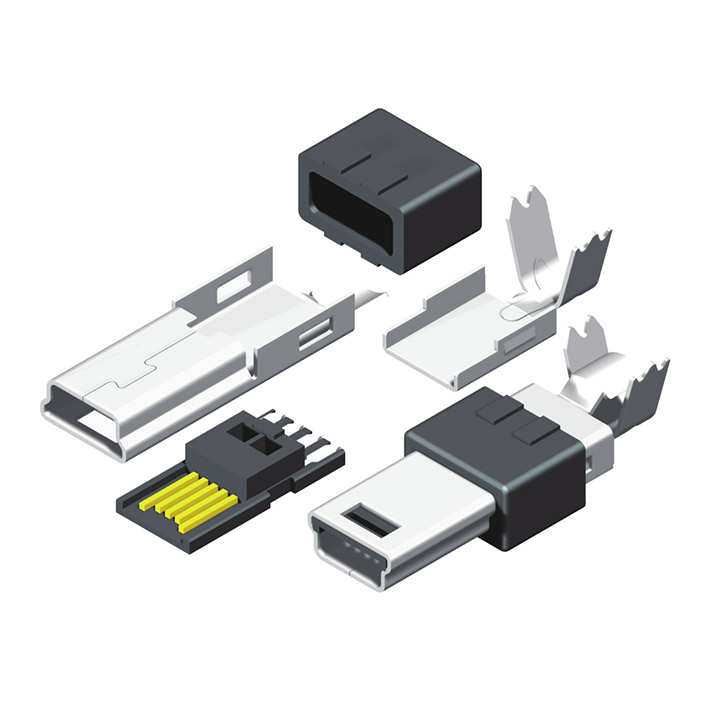

Mini USB B Type Male Solder 5P
Specification:
Current Rating: 1.0 A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 30V AC for one minute
Operation Temperature: -55°C to +105°C
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 30V AC for one minute
Operation Temperature: -55°C to +105°C
Material
Insulator: LCP, UL94V-0
Contact Pin: Brass
Shield: Cold Rolled Steel
Pin Terminal: Brass T=0.25
Contact Pin: Brass
Shield: Cold Rolled Steel
Pin Terminal: Brass T=0.25
