5TP500N-2EME
5TP500N-2EME

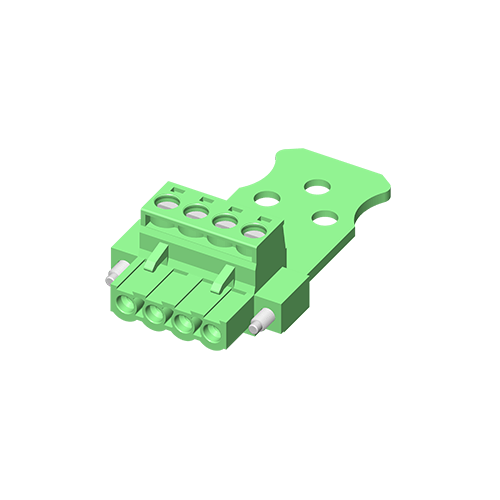

Pluggable Terminal Block 5.0mm With Ear

Specification:

ELECTRICAL
Standard: UL IEC
Insulation Resistance: 500MΩ
Dielectric Voltage: AC 1600V for one minute
Temp. Range: -40°C ~ +105°C

Material

Housing:PA66, UL94V-0
Pin Header:Copper Alloy, Sn Plated
