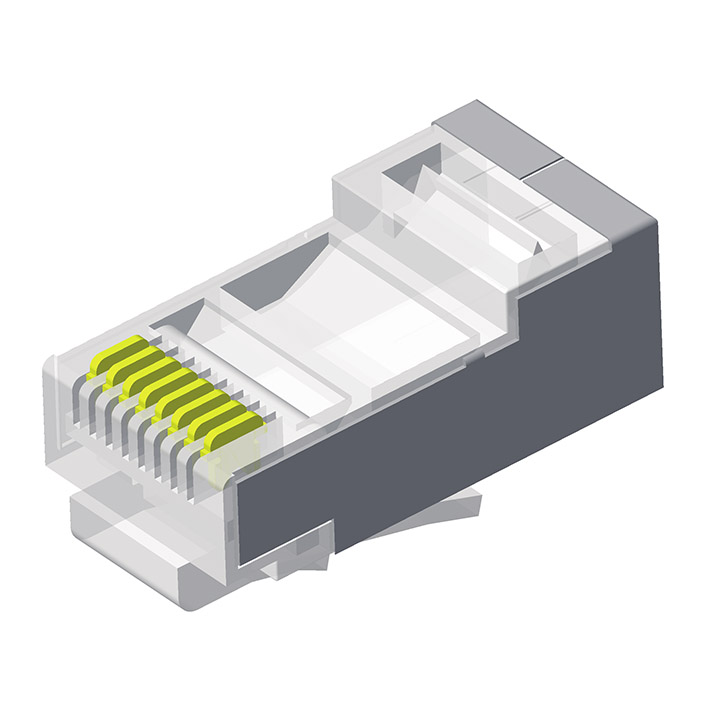

5RPX-8XXXXTLB-S78-A1
Modular Plug Shielded 8 Position Long Body S78 Series
Specification:
Current Rating: 1.5AMP
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000VAC/Minute
OperationTemperature: -40°C to +80°C
Durability: 750 Cycles.
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000VAC/Minute
OperationTemperature: -40°C to +80°C
Durability: 750 Cycles.
Material
Insulator: PC , UL94V-2 or UL94V-0
Contact Pin: Copper Alloy
Contact Pin: Copper Alloy
