5RPB-88XXXTLB-108-A1
Products Category
5RPB-88XXXTLB-108-A1

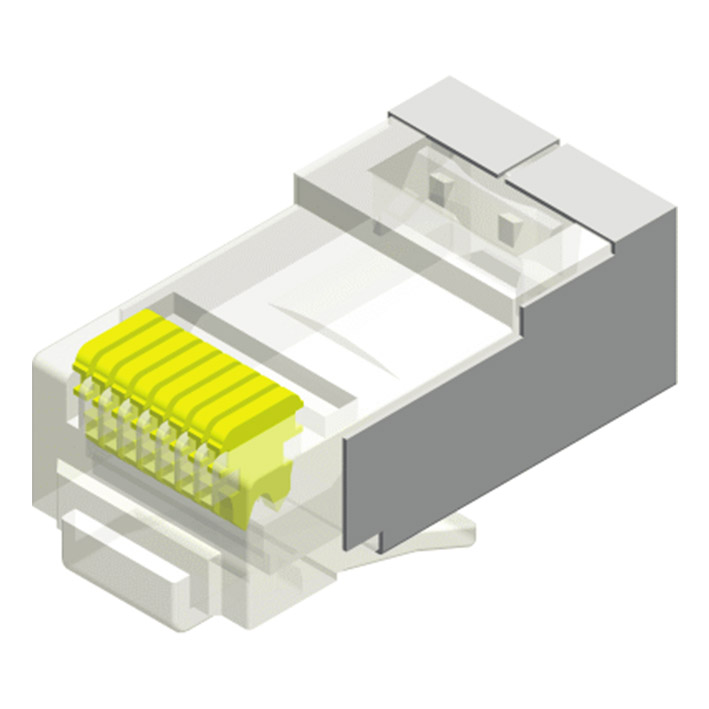

Modular Plug Shielded 8 Position Long Body For Category 108 Series
Specification:
Voltage Rating: 125V AC,at 1.5 amps.
Dielectric Withstanding Voltage: 1000V AC.
Insulation Resistance: 500MΩ
TerMination Resistance: 35mΩ Min.
Durability: 750 Cycles.
Temperature Rating: -40°C to +85°C
Dielectric Withstanding Voltage: 1000V AC.
Insulation Resistance: 500MΩ
TerMination Resistance: 35mΩ Min.
Durability: 750 Cycles.
Temperature Rating: -40°C to +85°C
Material
Housing: PC. UL94V-2, Clean
Contacts: Copper Alloy,
Plated with Gold.
Shielded: Copper Plated Nickel
Contacts: Copper Alloy,
Plated with Gold.
Shielded: Copper Plated Nickel
