5RJ1DR00N0X-XXXX00L-950-AX

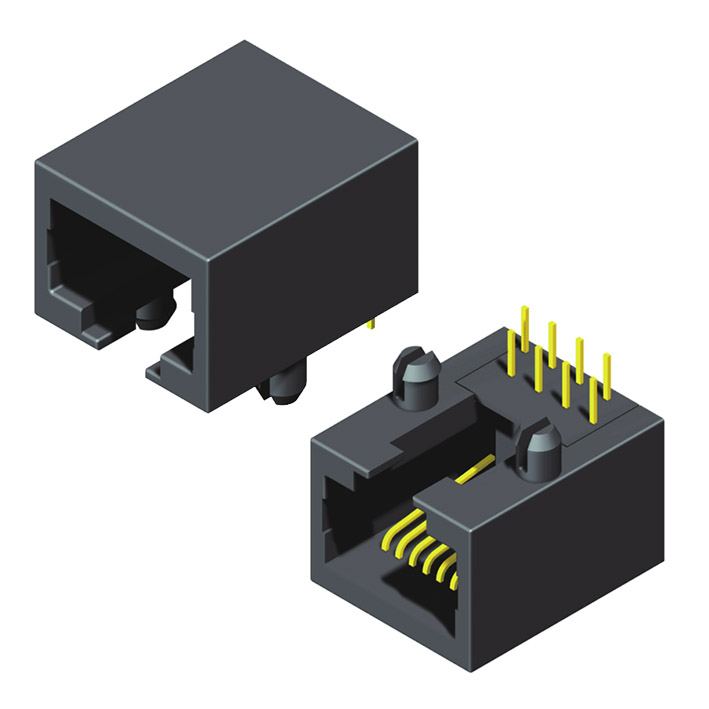

Modular Jack Side Entry H=11.5 W=18.0 950 Series

Specification:
Voltage Rating: 125V
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Voltage: 1000V
SolderingTemperature: 200°C / 5~10 Sec
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Voltage: 1000V
SolderingTemperature: 200°C / 5~10 Sec
Material
Housing: Glass Fiber, PBT. UL94V-0, Black
Contact: 0.35 mm thickness Phosphor Bronze,
Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
Contact: 0.35 mm thickness Phosphor Bronze,
Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
