5PH3MRA25-1XXXXXXXU-00

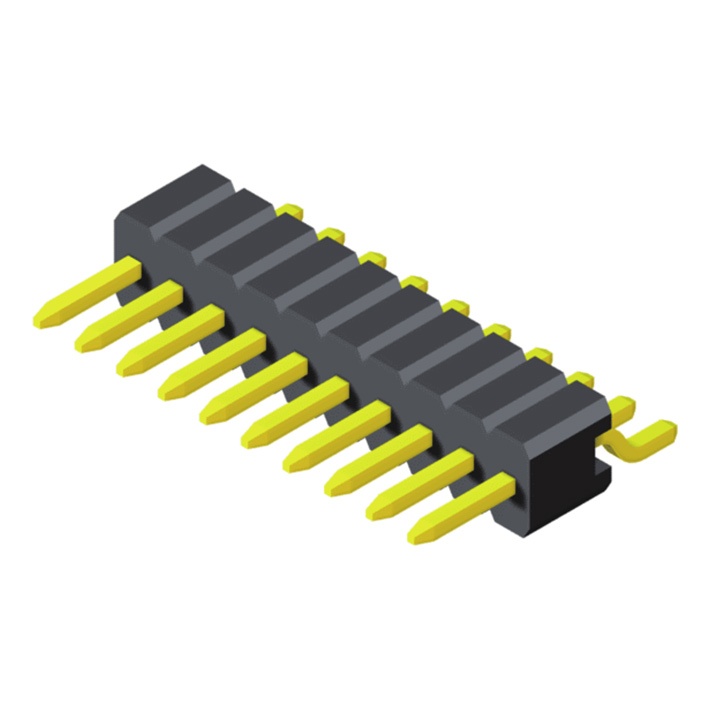

Pin Header 1.27mm SQ Pin=0.4mm 1 Row H=2.5mm SMT R/A Type

Specification:
Current Rating :1 AMP
Insulation Resistance :1000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 500V AC for one minute
Operation Temperature: -40°C to +105°C
Insulation Resistance :1000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 500V AC for one minute
Operation Temperature: -40°C to +105°C
Material
Insulator: Hi-Temp. Thermoplastic, UL 94V-0
Contact Pin: Copper alloy
Contact Pin: Copper alloy
3D Model
