5KTFP-10XXXXL04
Products Category
5KTFP-10XXXXL04

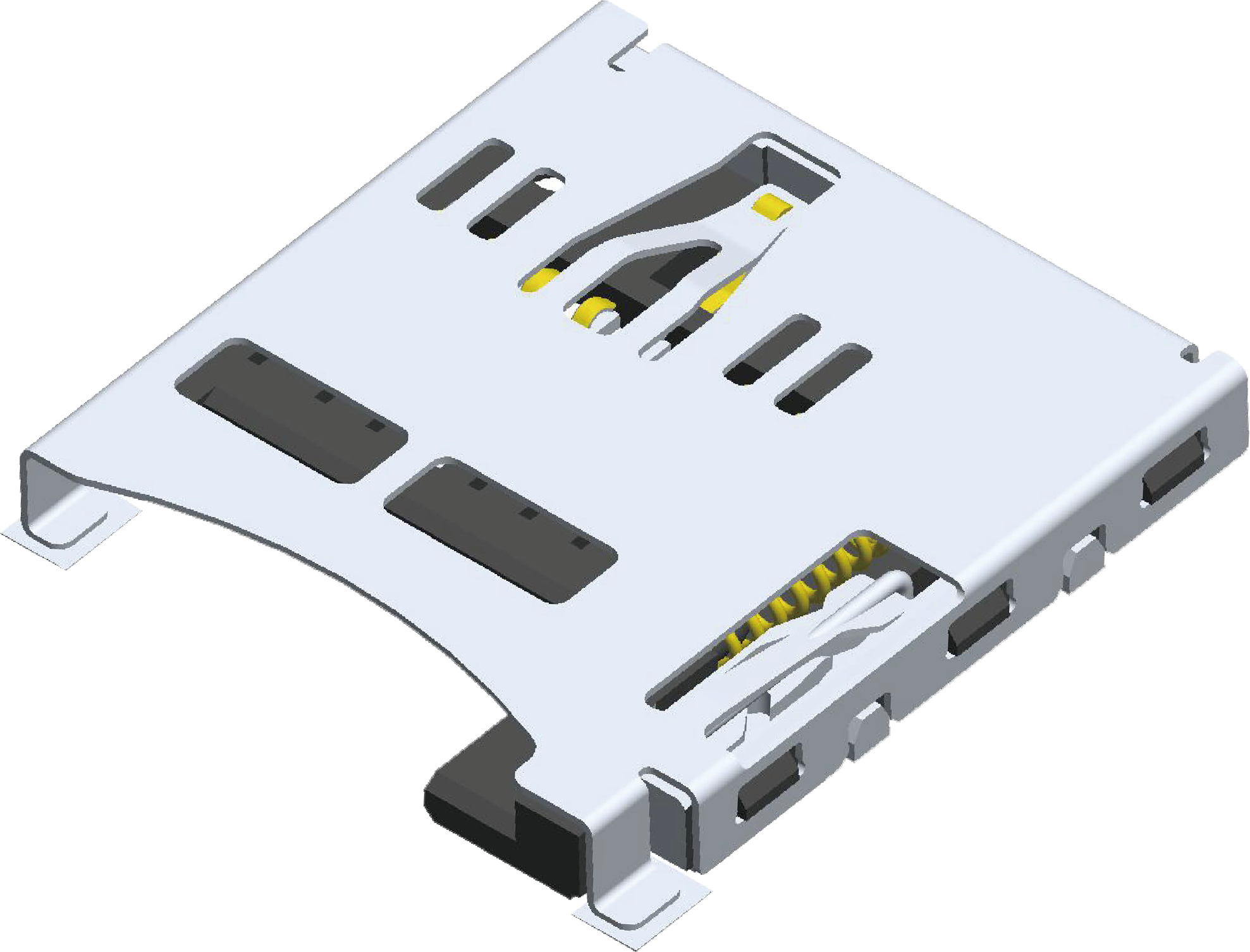

TF Card Push-Push Type 10P H=1.95
Specification:
Current Rating: 1.0 AMP
Rating Voltage: 30V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 50mΩ Max.
Dielectric Voltage: 500V AC for one minute
Operation Temperatue: -40°C to +85°C
Durability: 10000 Cycles Min.
Rating Voltage: 30V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 50mΩ Max.
Dielectric Voltage: 500V AC for one minute
Operation Temperatue: -40°C to +85°C
Durability: 10000 Cycles Min.
Material
Housing: Hi-Temp Temperature, UL94V-0, Black
Terminal: Copper Alloy
Shell: Stainless steel
Terminal: Copper Alloy
Shell: Stainless steel
