5KTFP-08S0NHL02

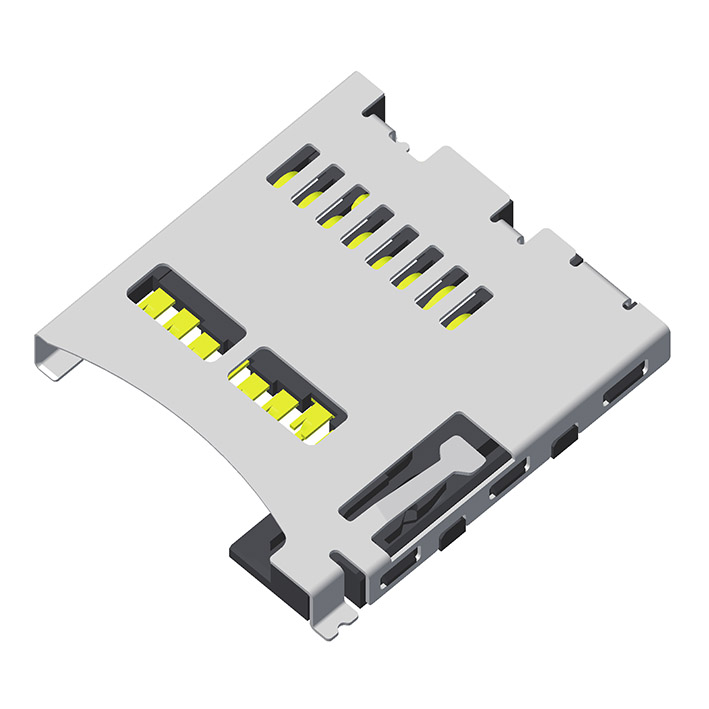

TF Card Holder Push-Push Type 8P H=1.85
Specification:
Current Rating: 0.5 A
Rating Voltage: 100V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 100mΩ Max.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -25°C to +85°C
Rating Voltage: 100V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 100mΩ Max.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -25°C to +85°C
Material
MATERIAL
Housing: Hi-Temp Temperature, UL94V-0, Black
Terminal: Copper Alloy
Shell: Stainless steel
Housing: Hi-Temp Temperature, UL94V-0, Black
Terminal: Copper Alloy
Shell: Stainless steel
