5KSIP-08G0NHL01
5KSIP-08G0NHL01

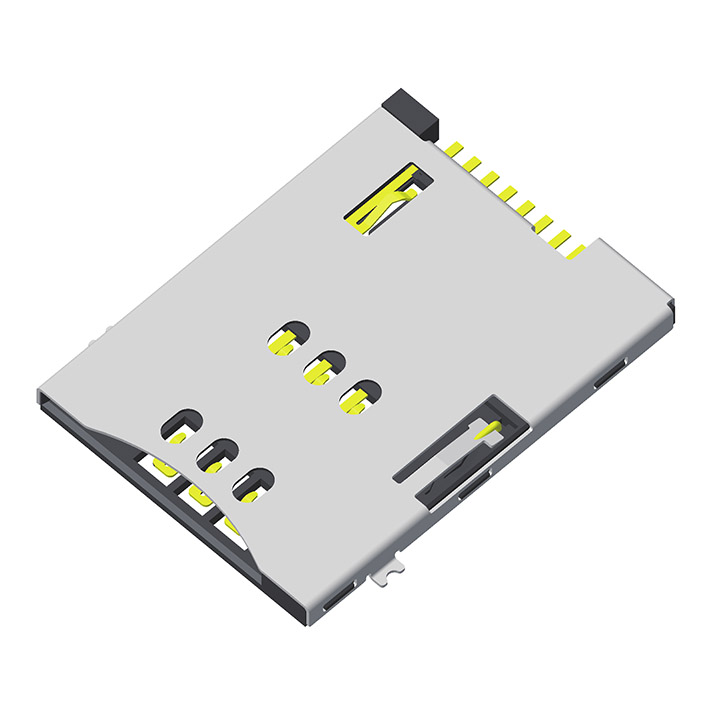

Sim Card Holder Push-Push Type 6+2P H=1.8
Specification:
Current Rating: 0.5 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 100mΩ Max.
Dielectric Voltage: 125V AC/Minute
Operating Temperature: -40°C to +70°C
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 100mΩ Max.
Dielectric Voltage: 125V AC/Minute
Operating Temperature: -40°C to +70°C
Material
Insulator: LCP, UL 94V-0
Contact : Copper Alloy
Shell: Stanless Steel
Contact : Copper Alloy
Shell: Stanless Steel
