5KMSP-06G0NHL02

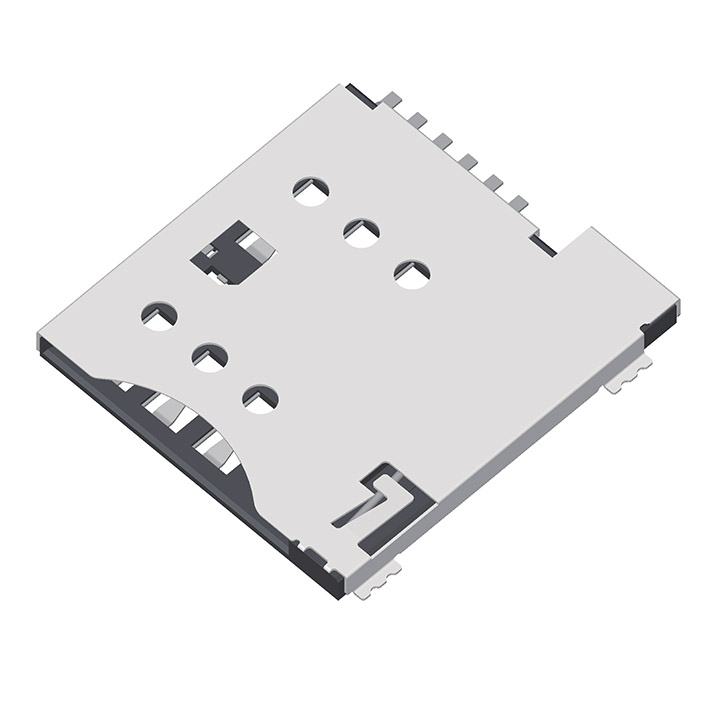

Micro Sim Card Holder Push-Push Type 6P H=1.35
Specification:
Current Rating: 0.5 AMP
Rating Voltage: 125V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 100mΩ Max.
Dielectric Voltage: 500V AC/Minute
Mating Cycles: 5000 Insertions
Ambient Temperature Range:-20°C to +60°C
Storage Temperature Range:-40°C to +70°C
Rating Voltage: 125V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 100mΩ Max.
Dielectric Voltage: 500V AC/Minute
Mating Cycles: 5000 Insertions
Ambient Temperature Range:-20°C to +60°C
Storage Temperature Range:-40°C to +70°C
Material
Housing: Hi-Temp Temperature, UL94V-0, Black
Terminal: Copper Alloy
Shell: Stainless
Terminal: Copper Alloy
Shell: Stainless
