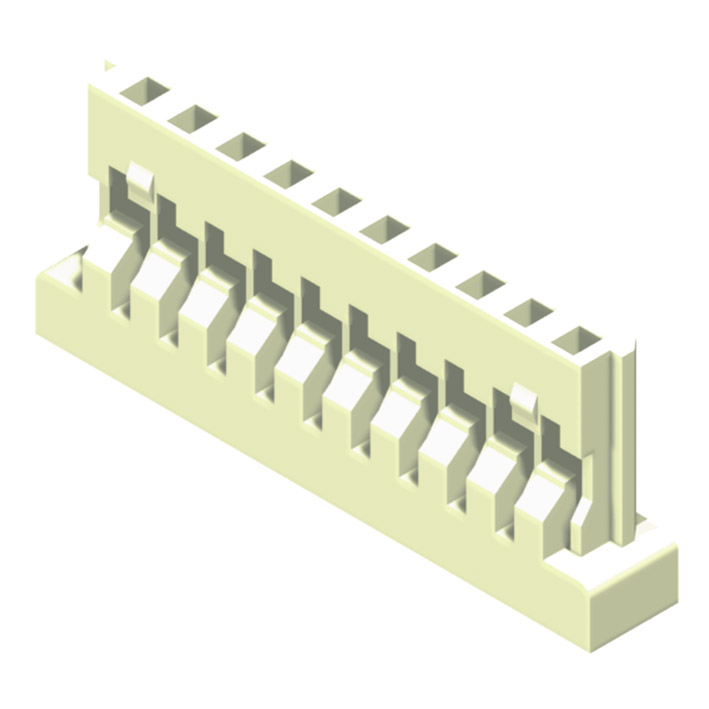

5H1253N0-1XXWBL00A01
5H1253N0-1XXWBL00A01
1253 Series 1.25mm Housing
Specification:
Current Rating: 1A AC/DC
Voltage Rating: 150V AC/DC
Temperature Range: -25°C ~ +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Min
Withstanding Voltage: 500V AC/minute
Voltage Rating: 150V AC/DC
Temperature Range: -25°C ~ +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Min
Withstanding Voltage: 500V AC/minute
Material
Material: Nylon 66,UL94V-0
