5DINIS2BNF-32S0WAB01
5DINIS2BNF-32S0WAB01

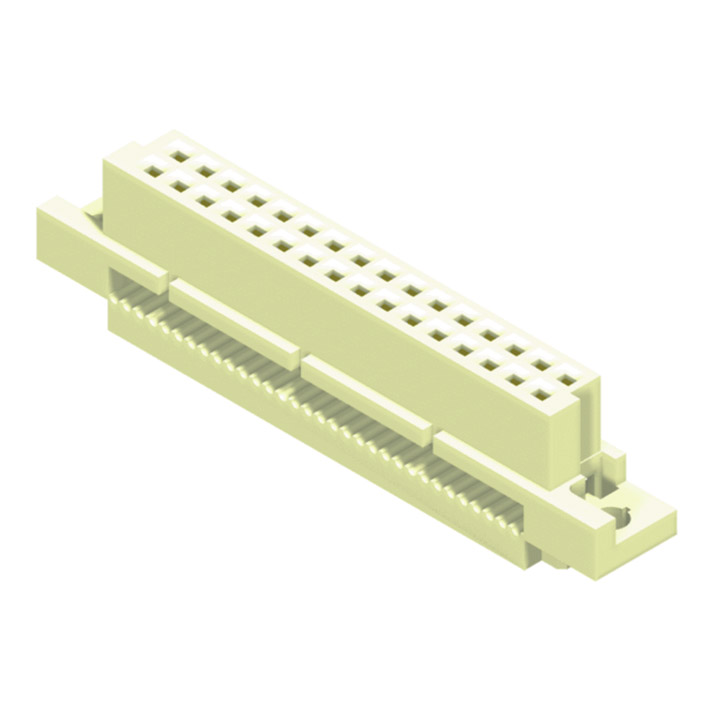

DIN 41612 Short Body IDC Type Female 2 Row 32Pin
Specification:
Current Rating: 3 AMP
Insulation Resistance: 1000MΩ Min. at DC 500V
Dielectric Withstanding Voltage: 1000V AC/minute
Contact Resistance: 30mΩ Max. at DC 100mA
Temperature Range: -40°C to +105°C
Insulation Resistance: 1000MΩ Min. at DC 500V
Dielectric Withstanding Voltage: 1000V AC/minute
Contact Resistance: 30mΩ Max. at DC 100mA
Temperature Range: -40°C to +105°C
Material
Material: P.B.T , UL94V-0
Terminal: Phosphor Bronze
Terminal: Phosphor Bronze
