57PDDRXF-D4BX11BB-01
Products Category
57PDDRXF-D4BX11BB-01

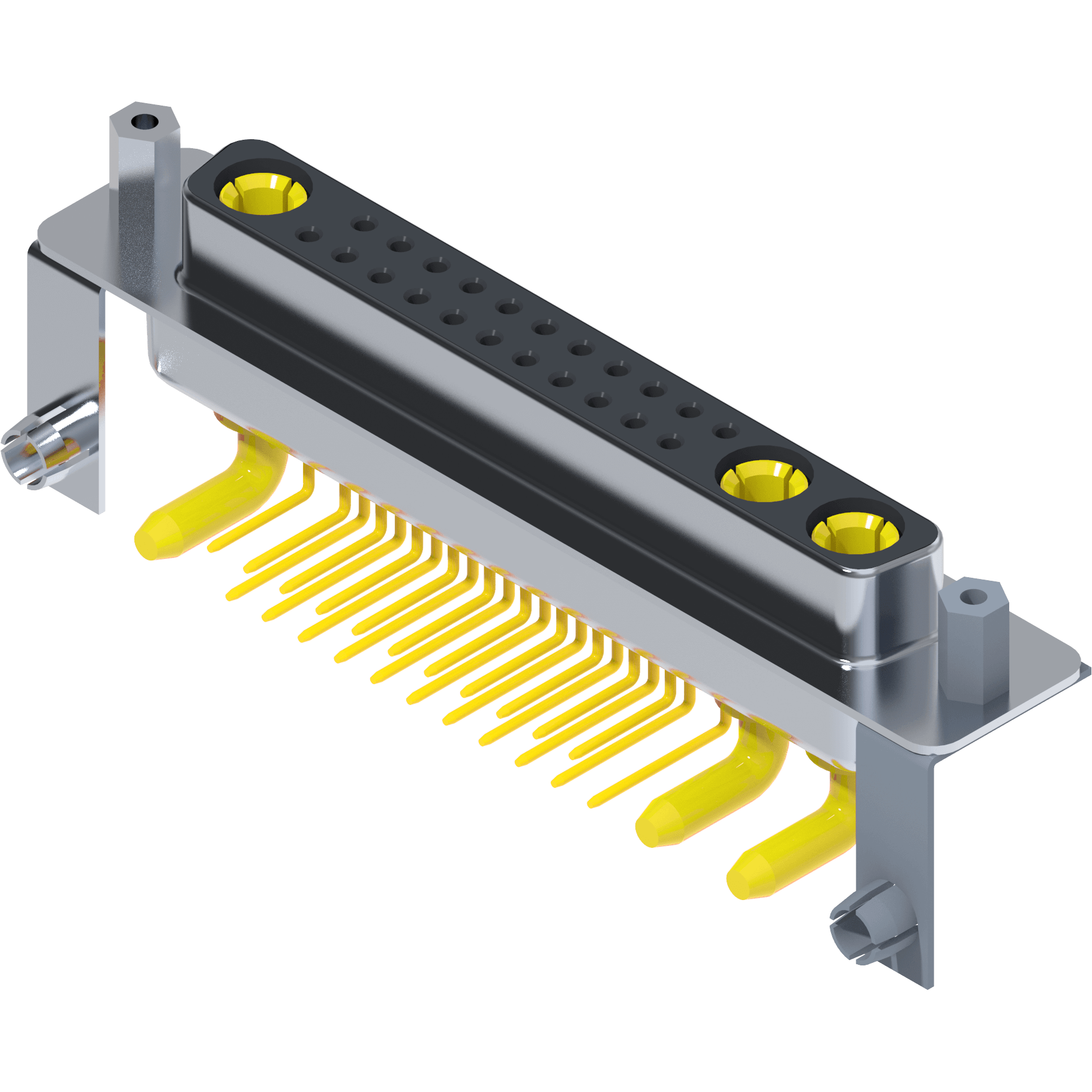

Power Connector Right Angle Type Female
Specification:
Current Rating: 3 AMP for Signal Pin
20 AMP for Power Pin
Insulation Resistance: 2000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -55°C to +125°C
20 AMP for Power Pin
Insulation Resistance: 2000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -55°C to +125°C
Material
Insulator: PBT+30%G.F., UL94V-0
Contact Pin: Copper Alloy
Contact Pin: Copper Alloy
