6STMS18-XXXXXXXXXA01
Products Category
6STMS18-XXXXXXXXXA01

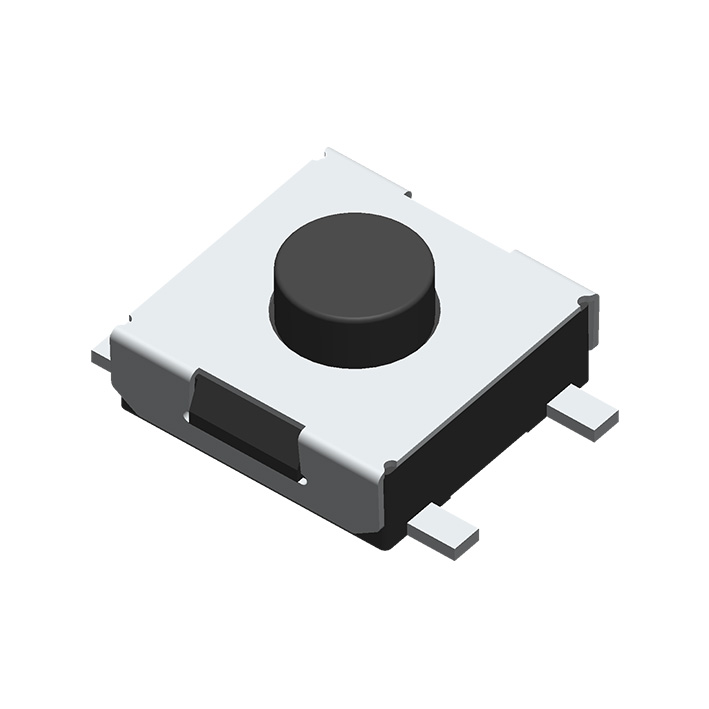

TACT SWITCH SMT Vertical Type H=2.5/3.1/3.5mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:500,000 CYCLES
OPERATING FORCE:100gf±30gf OR 180gf±50gf OR 250gf±50gf
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:500,000 CYCLES
OPERATING FORCE:100gf±30gf OR 180gf±50gf OR 250gf±50gf
Materials
BASE:NYLON 6T
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL
ACTUATOR:PPA
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL
ACTUATOR:PPA
