6STMS16-XXXXXXXXXA01
Products Category
6STMS16-XXXXXXXXXA01

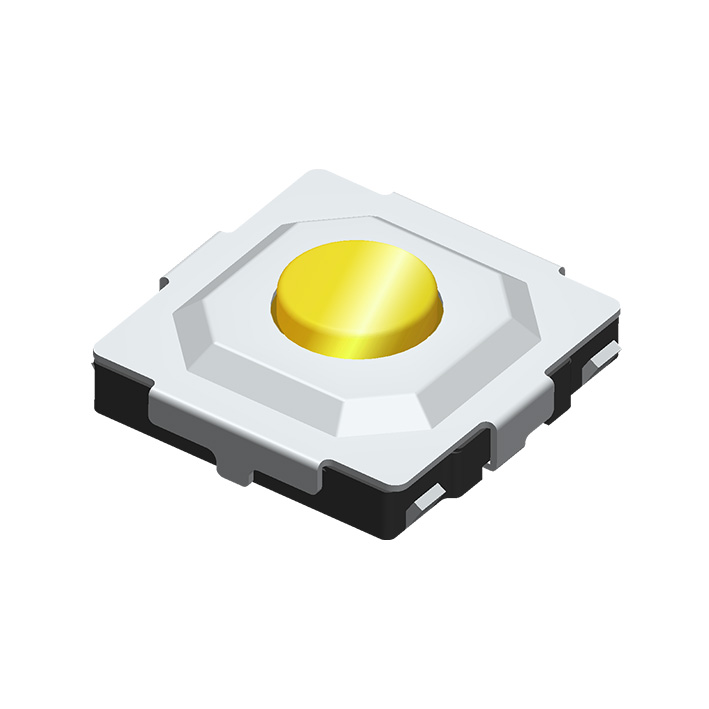

TACT SWITCH SMT Vertical Type H=1.5/1.7/2.0/2.5mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:500,000 CYCLES
OPERATING FORCE:100gf±30gf OR 180gf±50gf
250gf±50gf OR 320gf±70gf
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:500,000 CYCLES
OPERATING FORCE:100gf±30gf OR 180gf±50gf
250gf±50gf OR 320gf±70gf
Materials
BASE:LCP,BLACK
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL,TIN PLATED
ACTUATOR:BRASS
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL,TIN PLATED
ACTUATOR:BRASS
