6STMS11-027XXXXXXA01

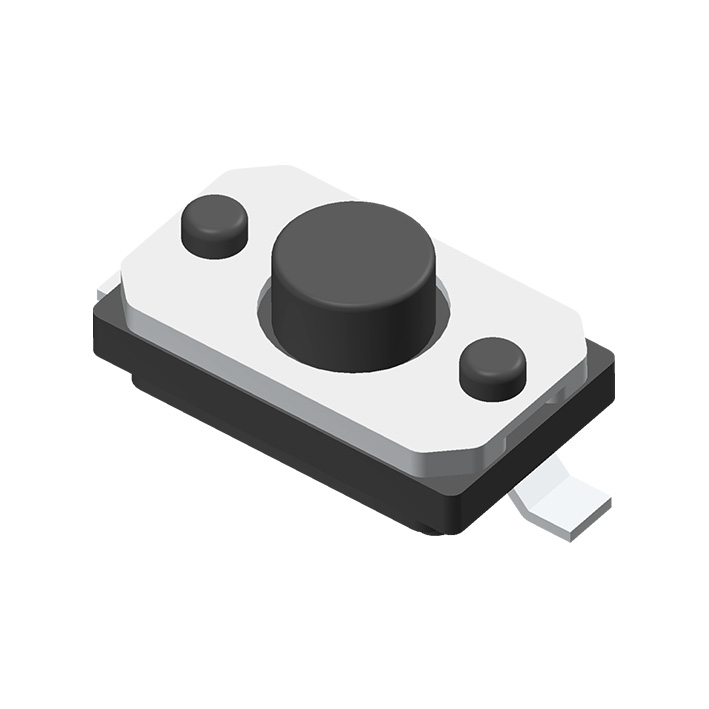

TACT SWITCH SMT Vertical Type H=2.7mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:100,000 CYCLES
OPERATING FORCE:250gf±50gf OR 300gf±50gf
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:100,000 CYCLES
OPERATING FORCE:250gf±50gf OR 300gf±50gf
Materials
BASE:NYLON 6T,BLACK
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL
ACTUATOR:SILICONE RUBBER
TERMINAL:BRASS,SILVER PLATED
CONTACT:STAINLESS STEEL,SILVER PLATED
COVER:STAINLESS STEEL
ACTUATOR:SILICONE RUBBER
