6STMR07-XXXXXXXXXA01
Products Category
6STMR07-XXXXXXXXXA01

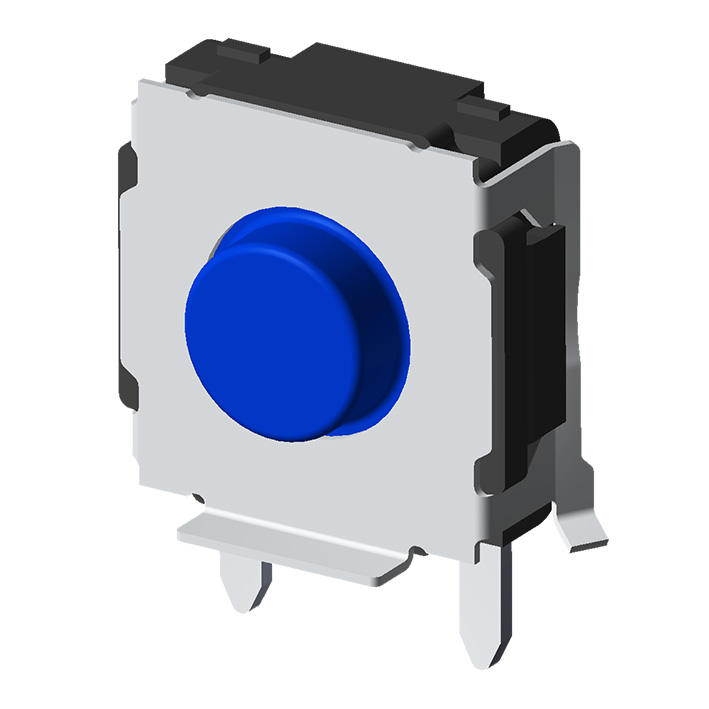

TACT SWITCH SMT Right Angle Type H=6.2mm
Specification:
DIELECTRIC STRENGTH: AC250V /1MIN
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:100,000 CYCLES
OPERATING FORCE:180gf±30gf OR 250gf±50gf OR 320gf±70gf
RATING:DC12V,50mA MAX
CONTACT RESISTANCE:100mΩ MAX
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:100,000 CYCLES
OPERATING FORCE:180gf±30gf OR 250gf±50gf OR 320gf±70gf
