6SRMS01-068010XXX301

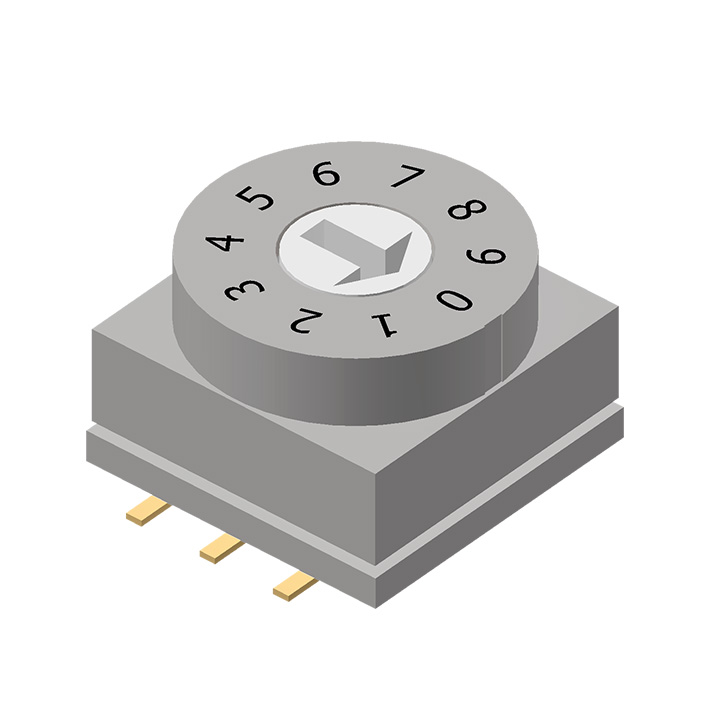

Rotary Code Switch SMT Vertical Type H=6.8mm
Specification:
DIELECTRIC STRENGTH: AC250V(50Hz OR 60Hz) /1MIN
RATING:SWITCHING: 150mA,42VDC
NON-SWITCHING: 200mA,42VDC
CONTACT RESISTANCE: 80mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING LIFE:10,000 CYCLES
OPERATING FORCE: 700gf MAX
OPERATING TEMPERATURE: -55°C~+125°C
RATING:SWITCHING: 150mA,42VDC
NON-SWITCHING: 200mA,42VDC
CONTACT RESISTANCE: 80mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING LIFE:10,000 CYCLES
OPERATING FORCE: 700gf MAX
OPERATING TEMPERATURE: -55°C~+125°C
