6SPDS03-072XXXXXXF01

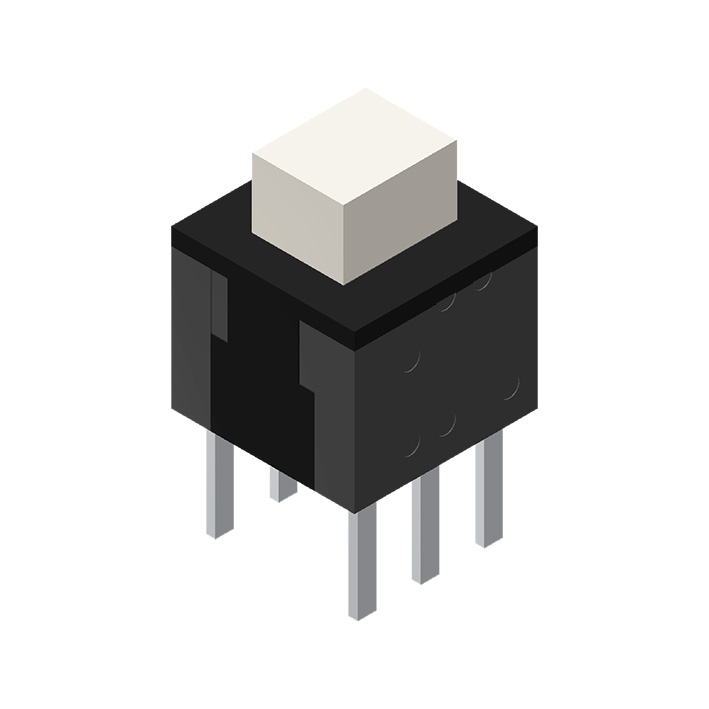

Push Switch DIP Vertical Type H=7.2mm
Specification:
DIELECTRIC STRENGTH: 500VAC(50-60Hz)/1Min
RATING:DC 12V 0.1A MAX
CONTACT RESISTANCE:100mΩ MAX.
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:10,000 CYCLES
OPERATING FORCE:230gf±80gf
OPERATING TEMPERATURE:-10°C~+60°C
RATING:DC 12V 0.1A MAX
CONTACT RESISTANCE:100mΩ MAX.
INSULATION RESISTANCE:100MΩ MIN
OPERATING LIFE:10,000 CYCLES
OPERATING FORCE:230gf±80gf
OPERATING TEMPERATURE:-10°C~+60°C
Materials
BASE:PPA+PHOSPHOR BRONZE,GRAY,SILVER PLATED
COVER:PPA,BLACK
ACTUATOR:PPA+PHOSPHOR BRONZE,NATURAL,SILVER PLATED
SPRING:STAINLESS STEEL WIRE
CAM STICK:STAINLESS STEEL WIRE
COVER:PPA,BLACK
ACTUATOR:PPA+PHOSPHOR BRONZE,NATURAL,SILVER PLATED
SPRING:STAINLESS STEEL WIRE
CAM STICK:STAINLESS STEEL WIRE
